- Length
- 1,200 mm
- Specification
- DN5;1SN-03;25MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 45°公制内螺纹24°锥带O形圈-轻型
Individual hose record
730503001438 Hose Repair Specifications
Excavator · Sunward · SWE18UF-3 · Attachments
Finished length1,000 mm
Locate this hose

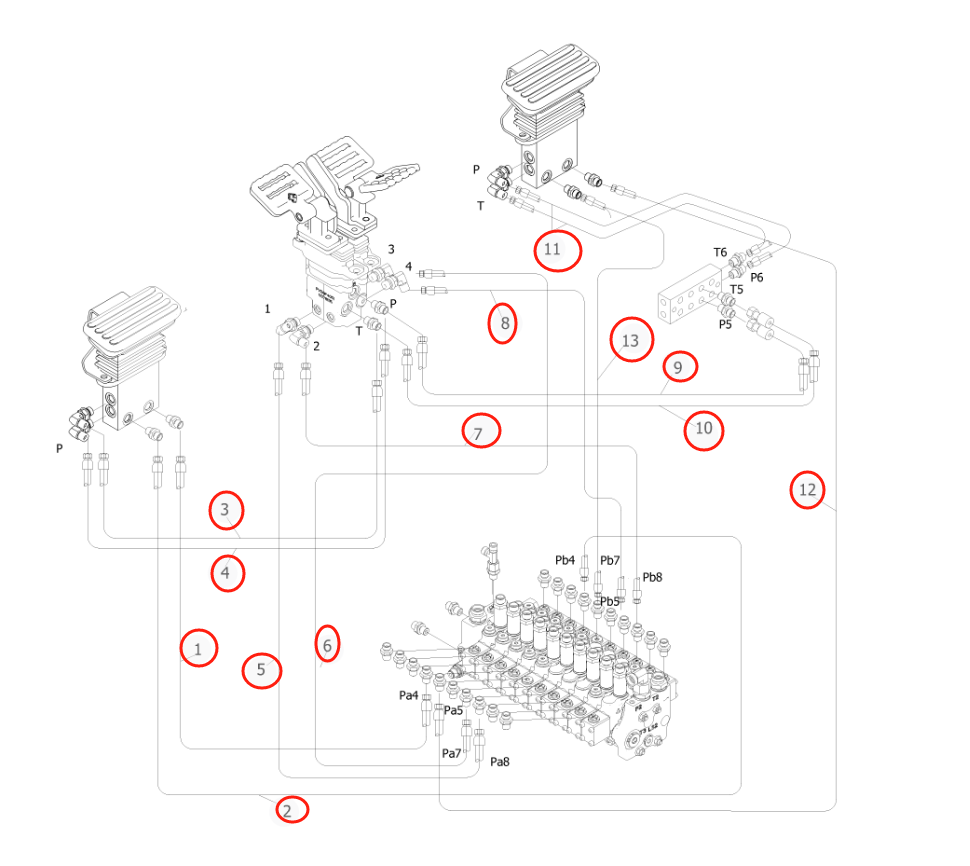

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 730503001438 before removing the hose.
Repair specifications
- Part number
- 730503001438
- Diagram pipe number
- 1
- Installation route
- 左踏板(其他)~分配阀PA4
- Hose specification
- DN5;1SN-03;25MPa
- Finished length
- 1,000 mm
- Working pressure
- 25 MPa
- Left fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
