Individual hose record
KHJ11520 Hose Repair Specifications
Excavator · Case · CX250D NLC · Hydraulic Pump
Finished length900 mm
Locate this hose

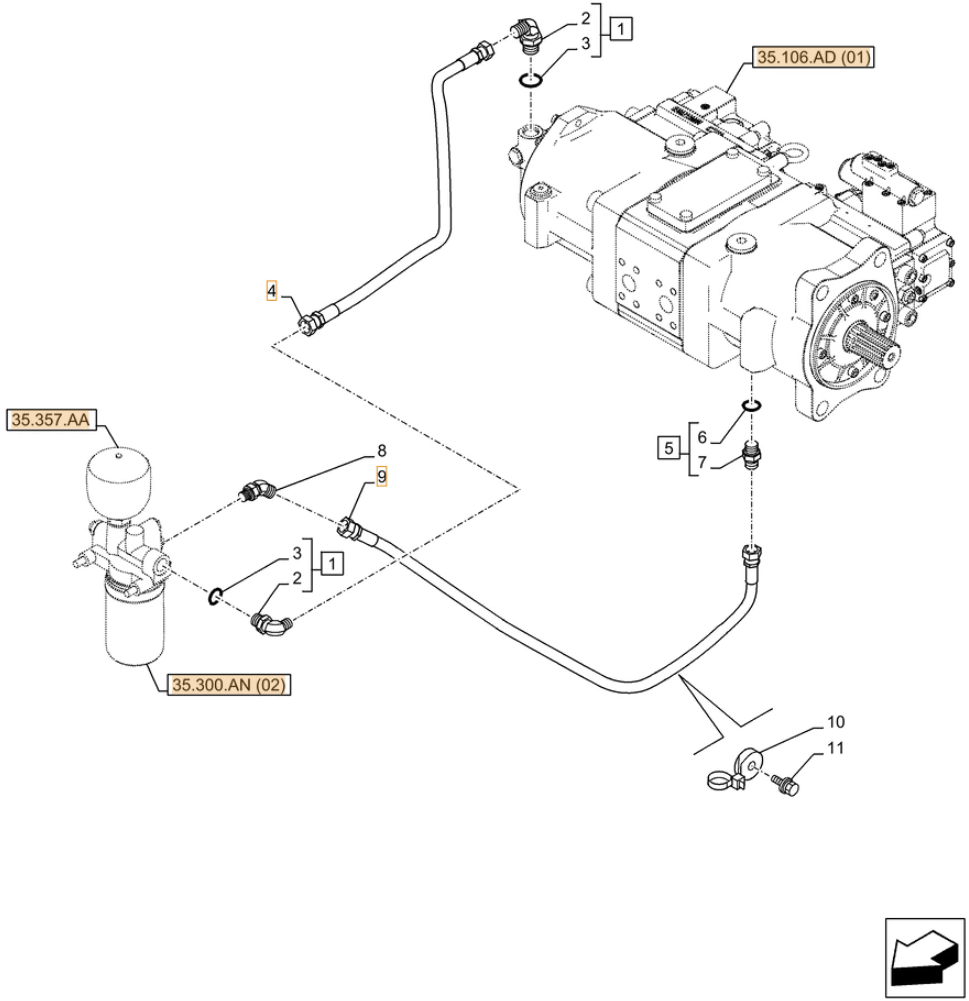

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number KHJ11520 before removing the hose.
Repair specifications
- Part number
- KHJ11520
- Diagram pipe number
- 9
- Installation route
- 液压泵~先导滤芯
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 900 mm
- Working pressure
- 18 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
