Individual hose record
4354468 Hose Repair Specifications
Excavator · Hitachi · EX110-5 · Control Valve
Finished length900 mm
Locate this hose

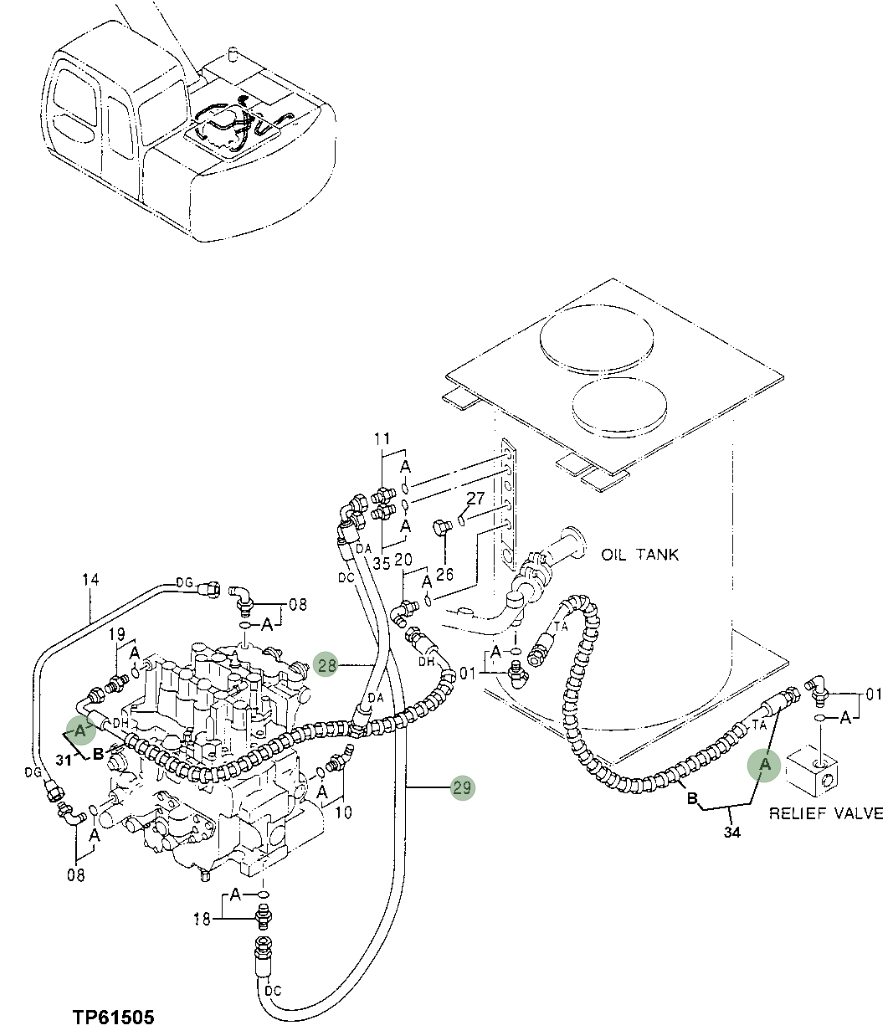

Installation diagram — Pipe No. 31A
Locate Pipe No. 31A in the diagram, then confirm part number 4354468 before removing the hose.
Repair specifications
- Part number
- 4354468
- Diagram pipe number
- 31A
- Installation route
- 分配阀上~液压油箱
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 900 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
