Individual hose record

KRJ11540 Hose Repair Specifications

Excavator · Case · CX250D NLC · Attachments – Breaker

Finished length670 mm

Locate this hose

Installation diagram — Pipe No. 19

Locate Pipe No. 19 in the diagram, then confirm part number KRJ11540 before removing the hose.

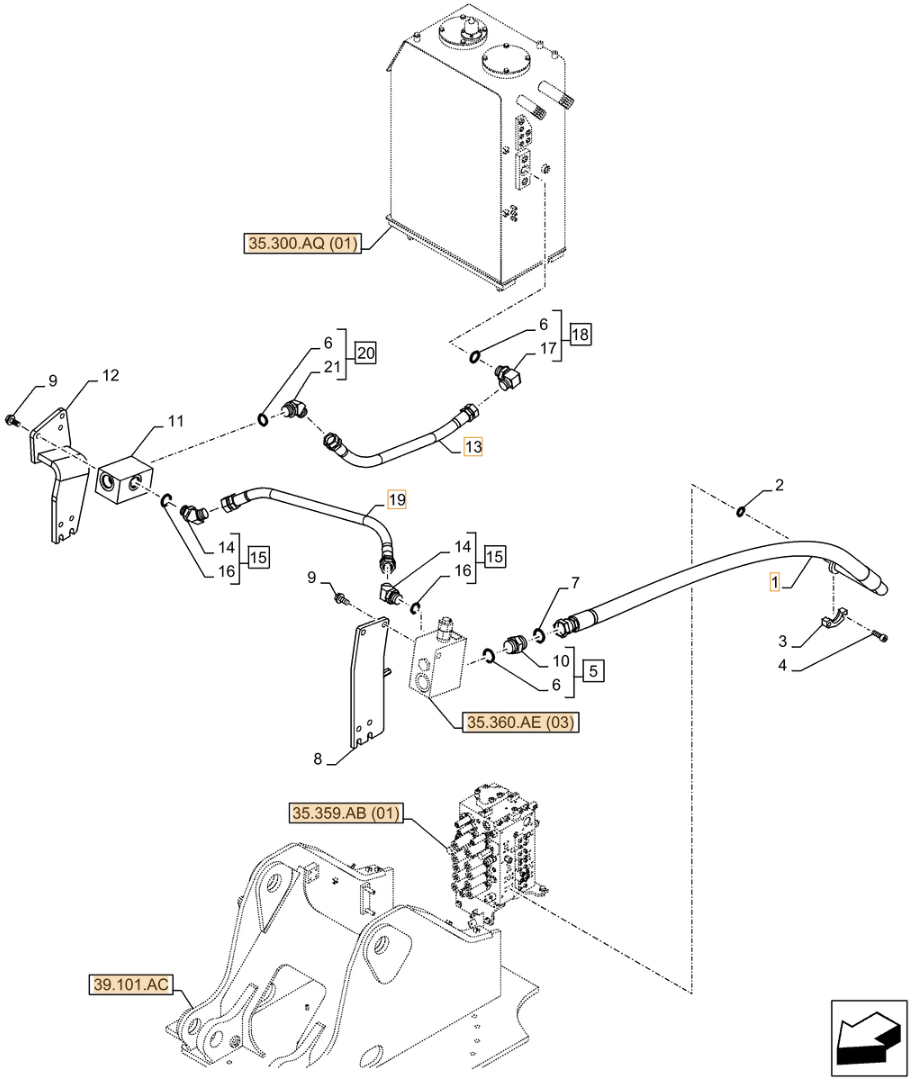

Case CX250D NLC installation diagram showing hydraulic hose KRJ11540 at Pipe No. 19 — **Case CX250D NLC**Part KRJ11540 · Pipe No. 19Open full-size diagram

Repair specifications

Part number: KRJ11540
Diagram pipe number: 19
Installation route: 左过渡阀块(破碎器)~右过渡阀块(破碎器)
Hose specification: DN19;4SH-12;42.0MPa
Finished length: 670 mm
Working pressure: 42 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 8

KRV19740

Installation route: 小臂破碎器截止阀

Length: 1,500 mm
Specification: DN25;4SP-16;32.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 1

KHJ2163

Installation route: 破碎器踏板~电磁阀(破碎器踏板)

Length: 620 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 9

KHJ2089

Installation route: 破碎器踏板~进回油阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 英制内螺纹60°内锥
Right fitting: 英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. 11

KHJ2581

Installation route: 破碎器踏板~分配阀后

Length: 3,100 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 英制内螺纹60°内锥
Right fitting: 90°英制内螺纹60°内锥

View full repair specifications

Diagram Pipe No. 12

KHJ16300

Installation route: 破碎器踏板~分配阀后

Length: 3,650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 10

KHJ2088

Installation route: 破碎器踏板~进回油阀

Length: 900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 12

KHJ2092

Installation route: 破碎器踏板~进回油阀

Length: 1,000 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 4

KHJ2195

Installation route: 进回油阀~电磁阀

Length: 680 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications
