Individual hose record
FF101086 Hose Repair Specifications
Excavator · Hitachi · ZX160LC-5N · Hydraulic Pump
Finished length450 mm
Locate this hose

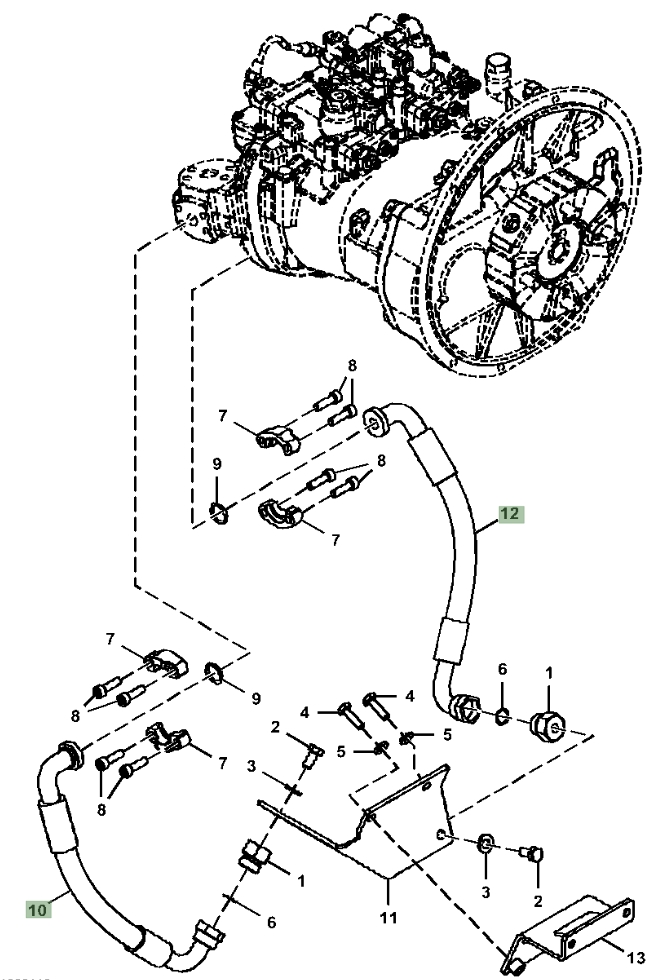

Installation diagram — Pipe No. 10
Locate Pipe No. 10 in the diagram, then confirm part number FF101086 before removing the hose.
Repair specifications
- Part number
- FF101086
- Diagram pipe number
- 10
- Installation route
- 液压泵~堵头(减震管)
- Hose specification
- DN19;4SP-12;35Mpa
- Finished length
- 450 mm
- Working pressure
- 35 MPa
- Left fitting
- 90° heavy-series flangeOriginal Chinese: 90°法兰-重型
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
