Individual hose record
4627099 Hose Repair Specifications
Excavator · Hitachi · ZX120 · Engine Oil Lines
Finished length1,300 mm
Locate this hose

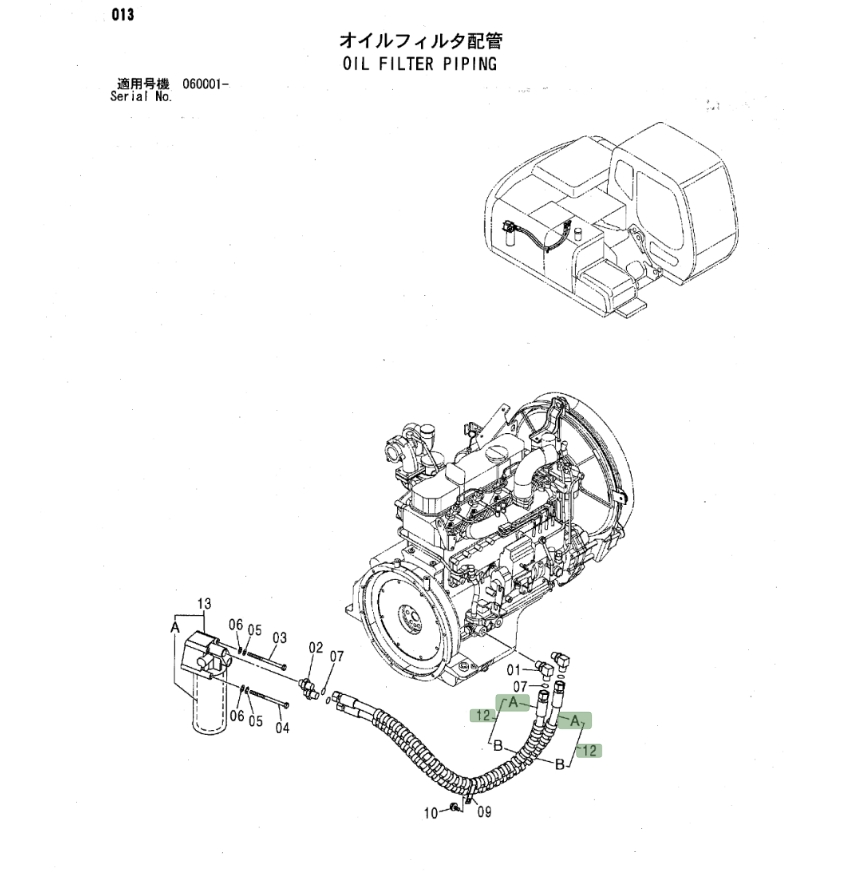

Installation diagram — Pipe No. 12A
Locate Pipe No. 12A in the diagram, then confirm part number 4627099 before removing the hose.
Repair specifications
- Part number
- 4627099
- Diagram pipe number
- 12A
- Installation route
- 机油管
- Hose specification
- DN16;1SN-10;13Mpa
- Finished length
- 1,300 mm
- Working pressure
- 13 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
