Individual hose record

4653737 Hose Repair Specifications

Excavator · Hitachi · ZX350LC-3 · Pedal

Finished length3,600 mm

Locate this hose

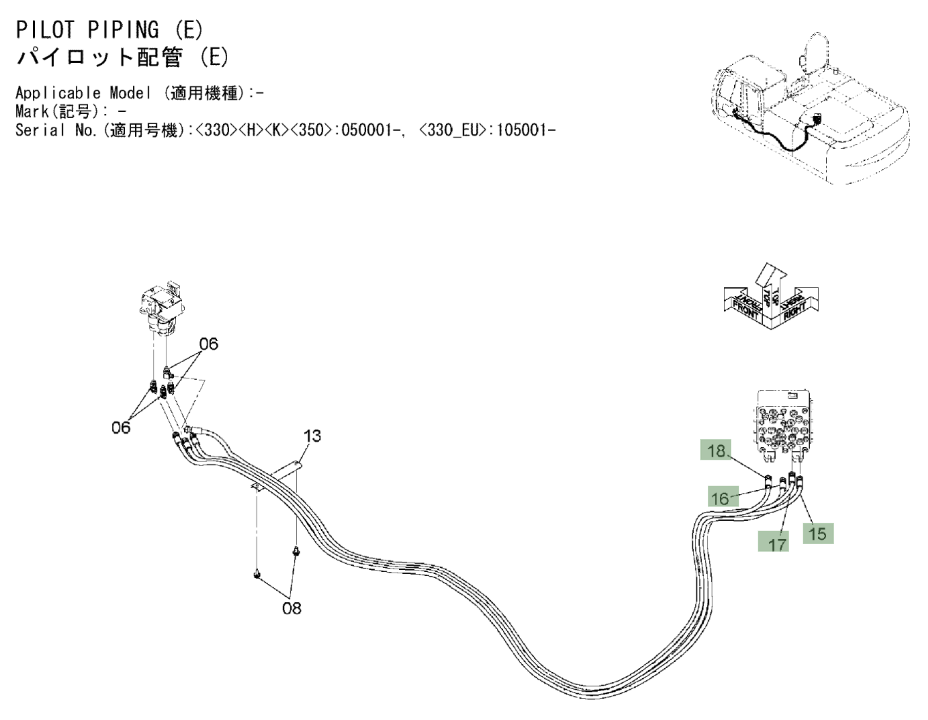

Installation diagram — Pipe No. 18

Locate Pipe No. 18 in the diagram, then confirm part number 4653737 before removing the hose.

Hitachi ZX350LC-3 installation diagram showing hydraulic hose 4653737 at Pipe No. 18 — Hitachi ZX350LC-3Part 4653737 · Pipe No. 18Open full-size diagram

Repair specifications

Part number: 4653737
Diagram pipe number: 18
Installation route: 行走踏板~中转接头
Hose specification: DN10;1SN-06;18MPa
Finished length: 3,600 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 17

4653732

Installation route: 行走踏板~中转接头

Length: 3,750 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 16

4653736

Installation route: 行走踏板~中转接头

Length: 3,600 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 15

4653735

Installation route: 行走踏板~中转接头

Length: 3,650 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications
