Individual hose record

KHJ2438 Hose Repair Specifications

Excavator · Case · CX135SR · Control Lever

Finished length1,650 mm

Locate this hose

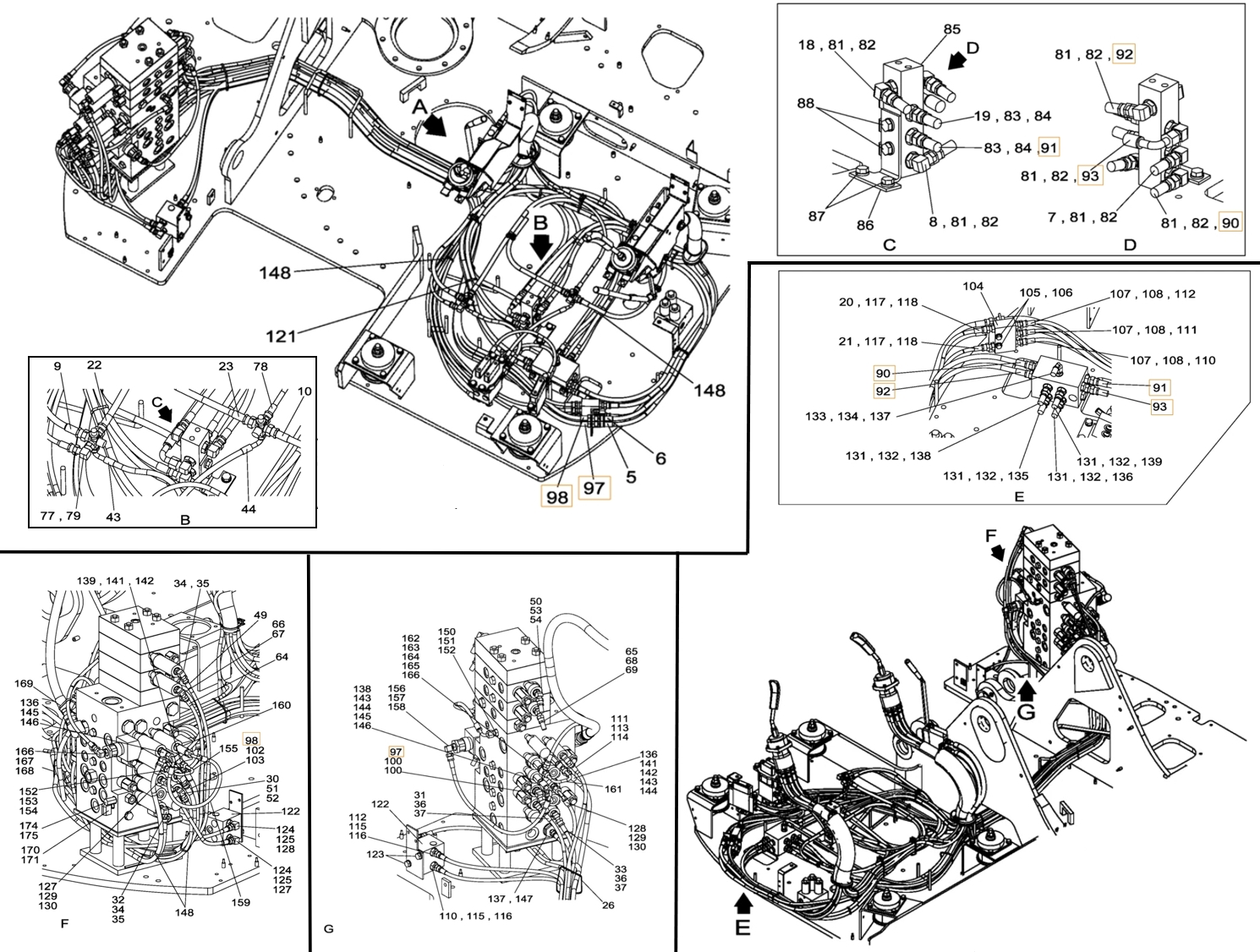

Installation diagram — Pipe No. 92

Locate Pipe No. 92 in the diagram, then confirm part number KHJ2438 before removing the hose.

Part number: KHJ2438
Diagram pipe number: 92
Installation route: 中转接头~进回油阀
Hose specification: DN10;1SN-06;18MPa
Finished length: 1,650 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 71

Installation route: 中转接头~电磁阀

Length: 450 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 93

Installation route: 中转接头~进回油阀

Length: 1,500 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 137

Installation route: 中转接头~分配阀后

Length: 2,550 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 135

Installation route: Intermediate adapter → control valveOriginal Chinese: 中转接头~分配阀

Length: 3,300 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
