4218419 Hose Repair Specifications

Excavator · Hitachi · EX150 · Attachments – Breaker

Finished length750 mm

Locate this hose

Installation diagram — Pipe No. 46

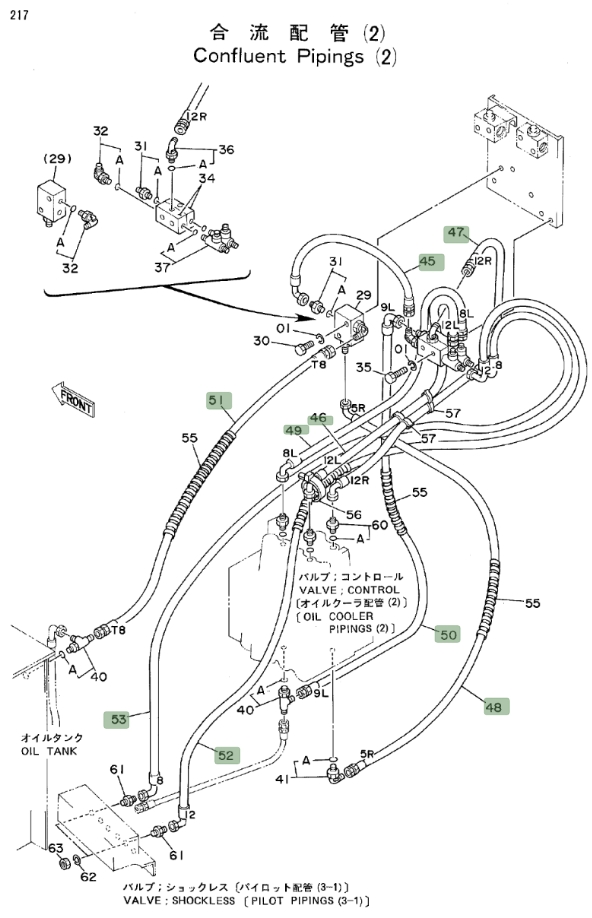

Locate Pipe No. 46 in the diagram, then confirm part number 4218419 before removing the hose.

Hitachi EX150 installation diagram showing hydraulic hose 4218419 at Pipe No. 46 — Hitachi EX150Part 4218419 · Pipe No. 46Open full-size diagram

Repair specifications

Part number: 4218419
Diagram pipe number: 46
Installation route: 分配阀上~过渡阀块(合流)
Hose specification: DN10;1层纤维-6;14MPa
Finished length: 750 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 22

4187392

Installation route: 大臂(破碎器)~铁管(破碎器)

Length: 1,600 mm
Specification: DN19;4SP-12;38Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 64

4209730

Installation route: 铁管(破碎器)~回油铁管(分配阀)

Length: 850 mm
Specification: DN19;1SN-12;7MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 50

4218416

Installation route: 分配阀下~过渡阀块(合流)

Length: 850 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 45

4213401

Installation route: 过渡阀块(隔板)~过渡阀块(合流)

Length: 500 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 49

4218420

Installation route: 分配阀上~过渡阀块(合流)

Length: 700 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 47

4218417

Installation route: 分配阀上~过渡阀块(合流)

Length: 660 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications
