Individual hose record
4187392 Hose Repair Specifications
Excavator · Hitachi · EX150 · Attachments – Breaker
Finished length1,600 mm
Locate this hose

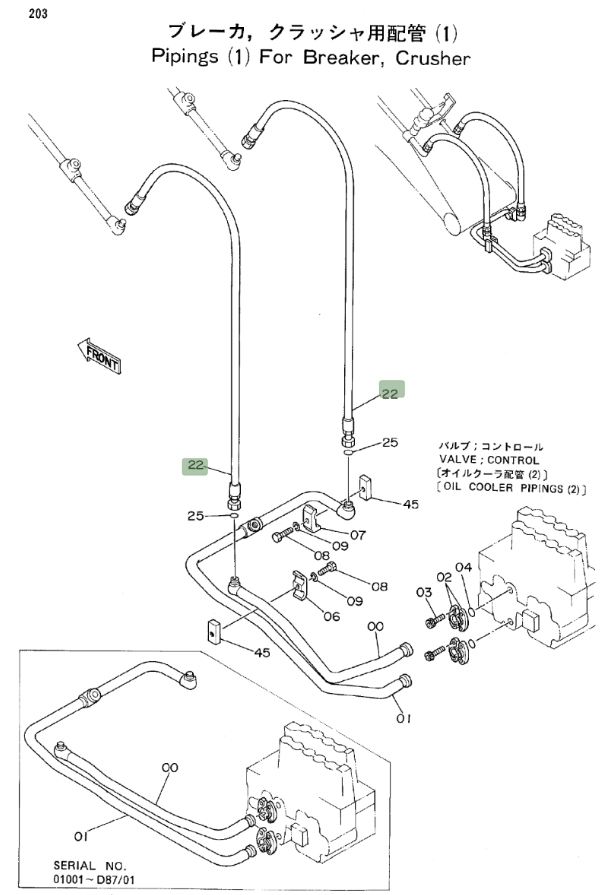

Installation diagram — Pipe No. 22
Locate Pipe No. 22 in the diagram, then confirm part number 4187392 before removing the hose.
Repair specifications
- Part number
- 4187392
- Diagram pipe number
- 22
- Installation route
- 大臂(破碎器)~铁管(破碎器)
- Hose specification
- DN19;4SP-12;38Mpa
- Finished length
- 1,600 mm
- Working pressure
- 38 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 2
