- Length
- 1,100 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Individual hose record
DS2119068 Hose Repair Specifications
Excavator · Doosan · DX140W-3 · Control Valve
Finished length2,060 mm
Locate this hose

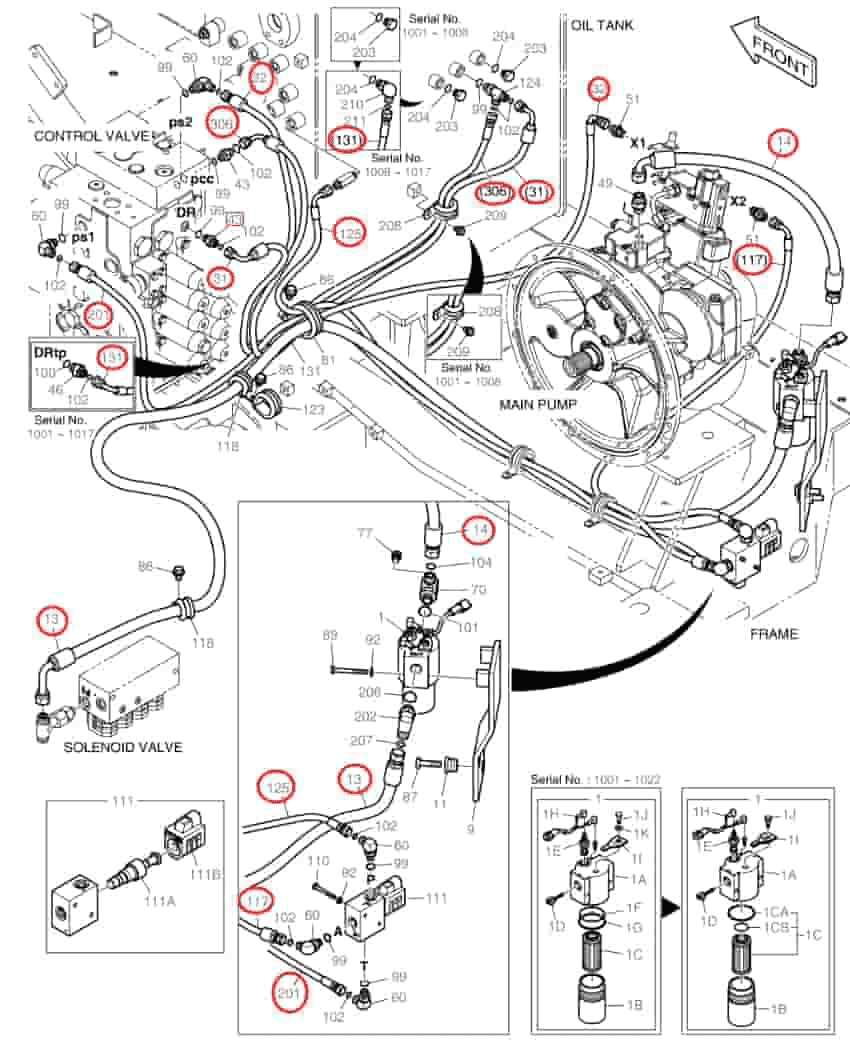

Installation diagram — Pipe No. 201
Locate Pipe No. 201 in the diagram, then confirm part number DS2119068 before removing the hose.
Repair specifications
- Part number
- DS2119068
- Diagram pipe number
- 201
- Installation route
- 分配阀PS1口~电磁阀T口
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 2,060 mm
- Working pressure
- 22.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
