Individual hose record

KHJ2087 Hose Repair Specifications

Excavator · Case · CX220B · Attachments – Breaker

Finished length800 mm

Locate this hose

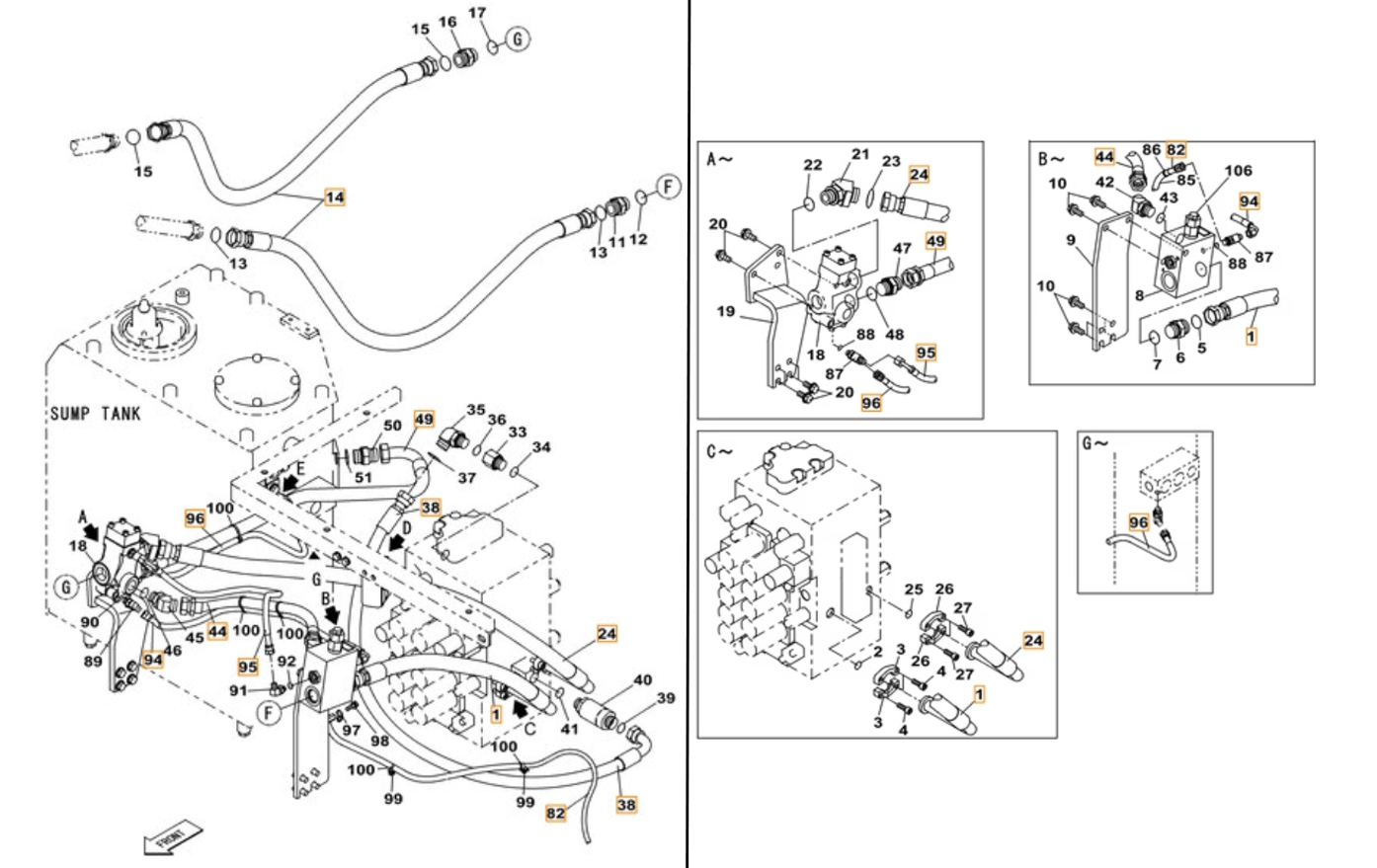

Installation diagram — Pipe No. 94

Locate Pipe No. 94 in the diagram, then confirm part number KHJ2087 before removing the hose.

Case CX220B installation diagram showing hydraulic hose KHJ2087 at Pipe No. 94 — **Case CX220B**Part KHJ2087 · Pipe No. 94Open full-size diagram

Repair specifications

Part number: KHJ2087
Diagram pipe number: 94
Installation route: 右过渡阀块(破碎器)~左过渡阀块(破碎器)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 800 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
