Individual hose record
4371504 Hose Repair Specifications
Excavator · Hitachi · EX230LC-5 · Solenoid Valve
Finished length2,900 mm
Locate this hose

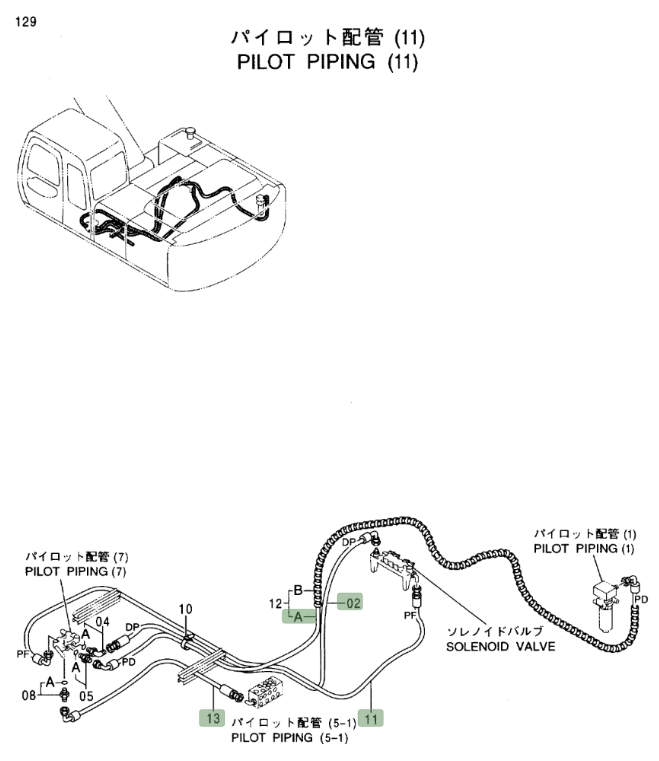

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number 4371504 before removing the hose.
Repair specifications
- Part number
- 4371504
- Diagram pipe number
- 11
- Installation route
- 电磁阀~进回油阀
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 2,900 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
