Individual hose record
KHJ2195 Hose Repair Specifications
Excavator · Case · CX80 · Hydraulic Tank
Finished length680 mm
Locate this hose

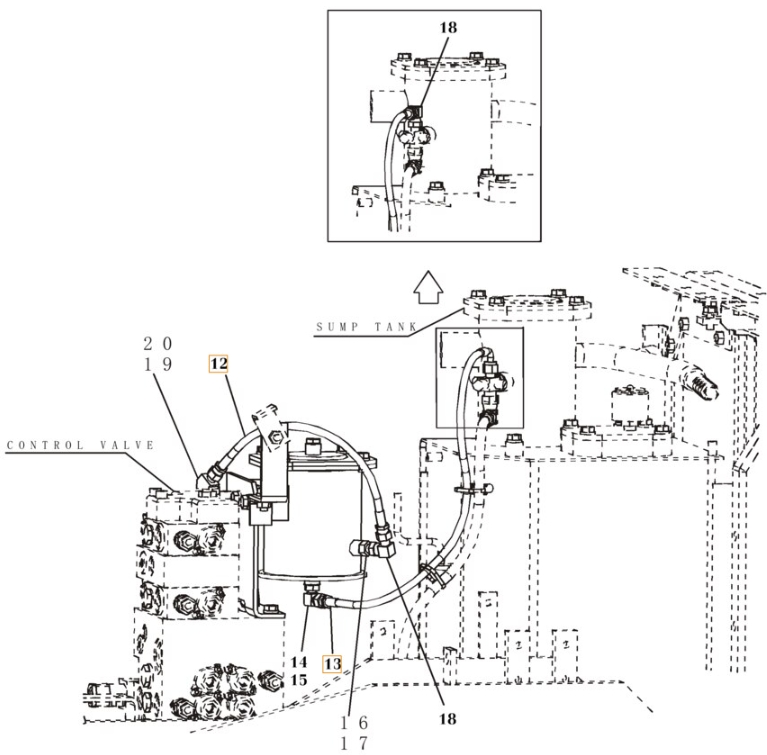

Installation diagram — Pipe No. 13
Locate Pipe No. 13 in the diagram, then confirm part number KHJ2195 before removing the hose.
Repair specifications
- Part number
- KHJ2195
- Diagram pipe number
- 13
- Installation route
- 液压油箱~液压油滤清器
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 680 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
