Individual hose record

151892A1 Hose Repair Specifications

Excavator · Case · CX700B · Grease Lines

Finished length1,950 mm

Locate this hose

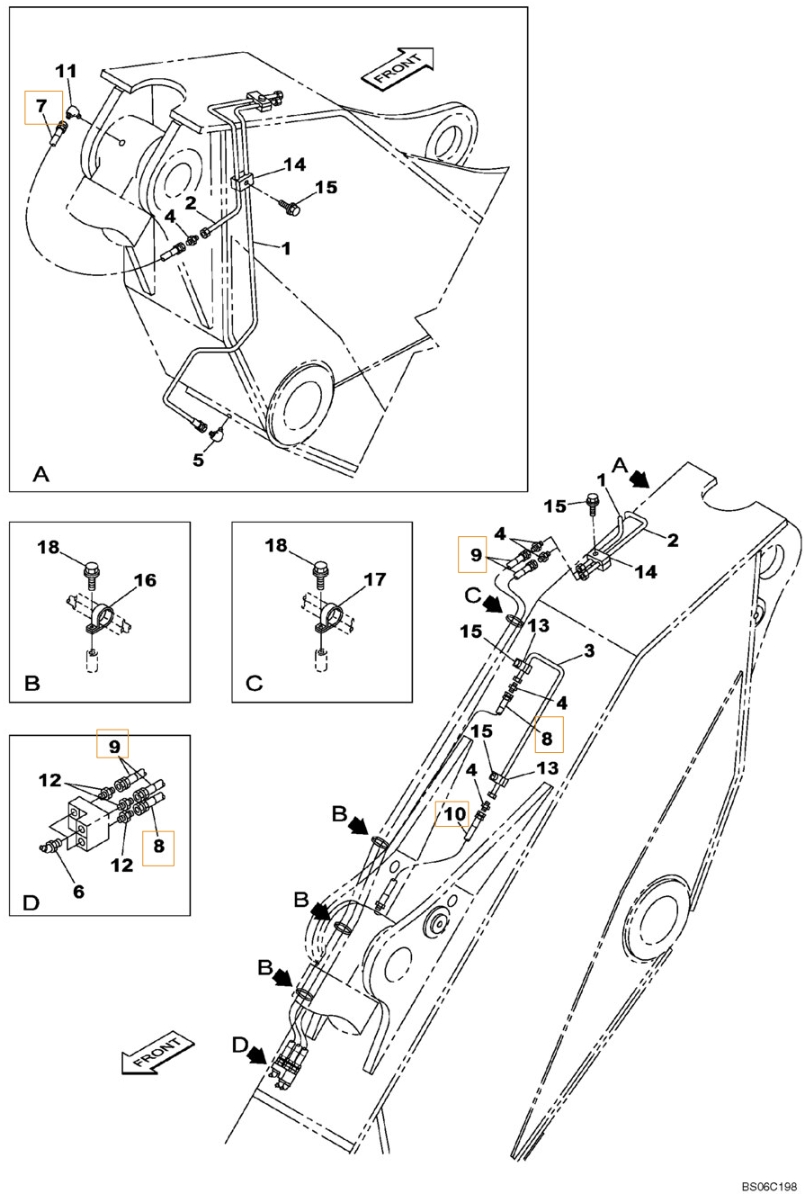

Installation diagram — Pipe No. 9

Locate Pipe No. 9 in the diagram, then confirm part number 151892A1 before removing the hose.

Part number: 151892A1
Diagram pipe number: 9
Installation route: 小臂黄油管
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,950 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 2

Same system

Diagram Pipe No. 7

Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管

Length: 650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 8

Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管

Length: 750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
