4281530 Hose Repair Specifications

Excavator · Hitachi · EX100-3 · Pedal

Finished length1,200 mm

Locate this hose

Installation diagram — Pipe No. 16

Locate Pipe No. 16 in the diagram, then confirm part number 4281530 before removing the hose.

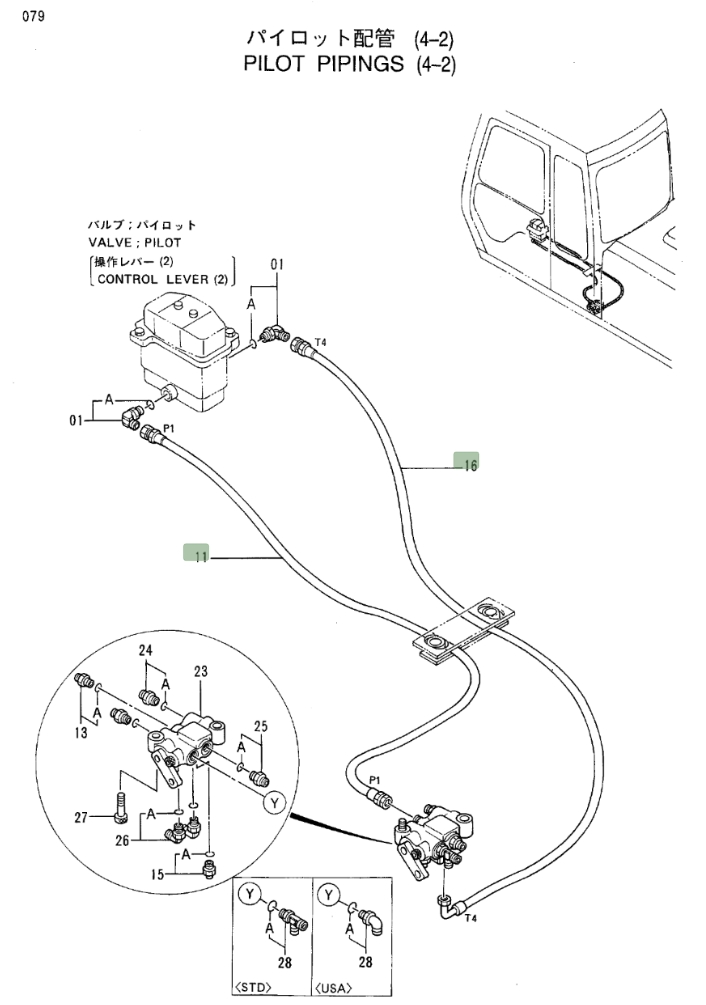

Hitachi EX100-3 installation diagram showing hydraulic hose 4281530 at Pipe No. 16 — Hitachi EX100-3Part 4281530 · Pipe No. 16Open full-size diagram

Repair specifications

Part number: 4281530
Diagram pipe number: 16
Installation route: 行走推杆~进回油阀
Hose specification: DN10;1层纤维-6;14MPa
Finished length: 1,200 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1
