Individual hose record
KHJ2344 Hose Repair Specifications
Excavator · Case · CX130C W/B · Pedal
Finished length2,550 mm
Locate this hose

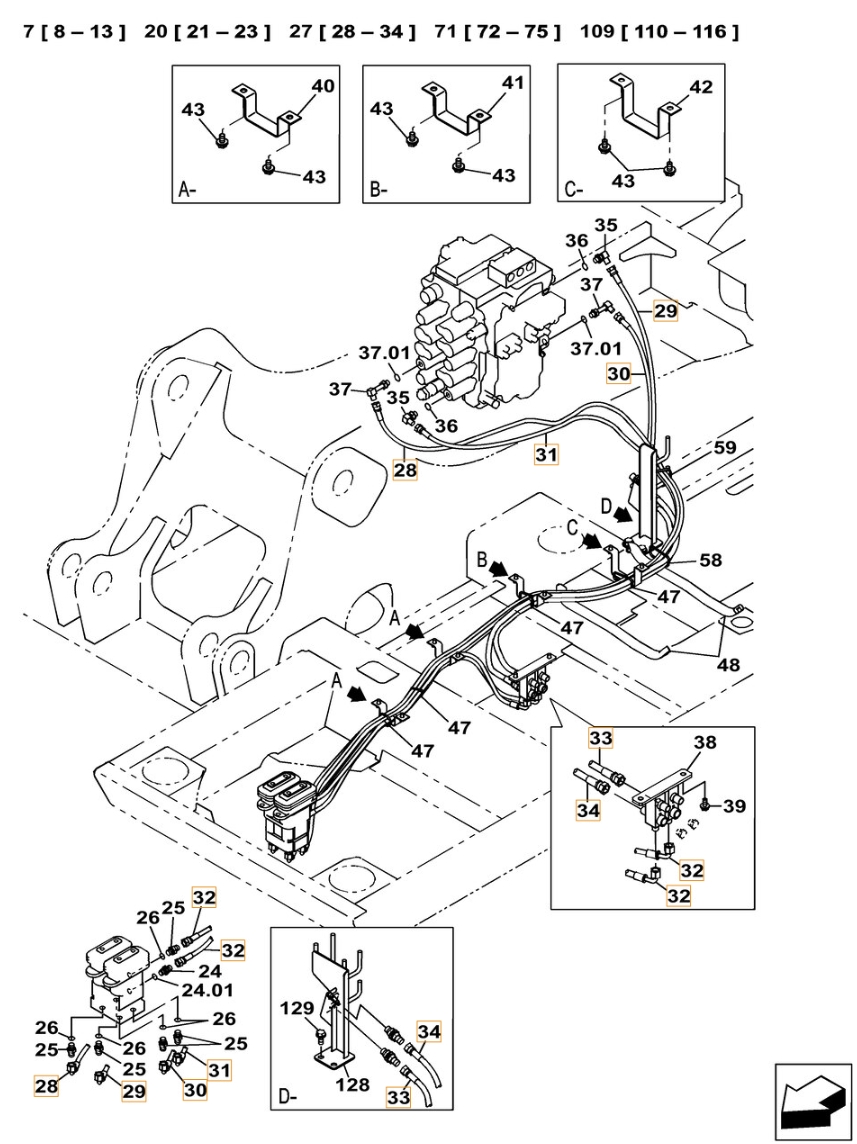

Installation diagram — Pipe No. 30
Locate Pipe No. 30 in the diagram, then confirm part number KHJ2344 before removing the hose.
Repair specifications
- Part number
- KHJ2344
- Diagram pipe number
- 30
- Installation route
- 行走踏板~分配阀后
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 2,550 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
