Individual hose record

4644618 Hose Repair Specifications

Excavator · Hitachi · ZX200LC-3 · Attachments – Breaker

Finished length480 mm

Locate this hose

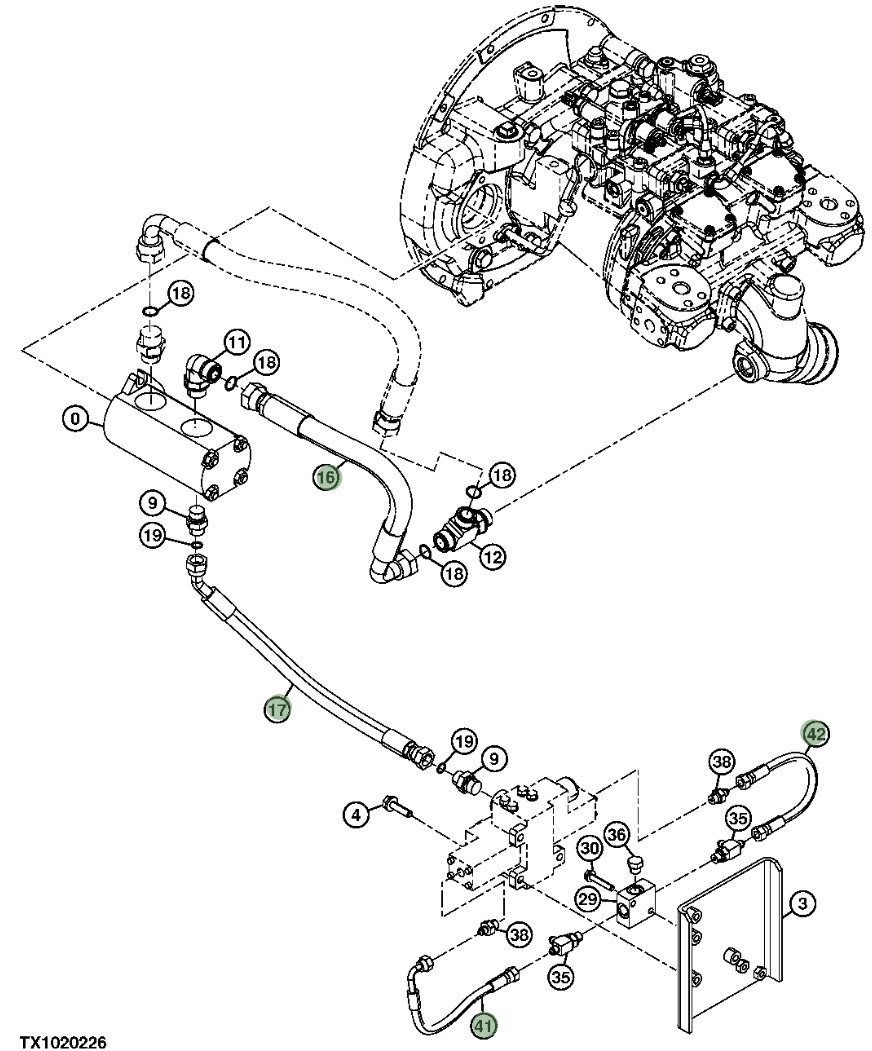

Installation diagram — Pipe No. 16

Locate Pipe No. 16 in the diagram, then confirm part number 4644618 before removing the hose.

Hitachi ZX200LC-3 installation diagram showing hydraulic hose 4644618 at Pipe No. 16 — **Hitachi ZX200LC-3**Part 4644618 · Pipe No. 16Open full-size diagram

Repair specifications

Part number: 4644618
Diagram pipe number: 16
Installation route: 先导泵~吸油铁管
Hose specification: DN19;1SN-12;7Mpa
Finished length: 480 mm
Working pressure: 7 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 0

4649213

Installation route: 大臂(前段)~大臂(后段)

Length: 1,300 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 15A

4275675

Installation route: 大臂(破碎器)~过渡阀块(破碎器)

Length: 1,100 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 25

4453281

Installation route: 中转接头~过渡阀块(破碎器)

Length: 1,300 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 42

4451995

Installation route: 控制阀(破碎器)~过渡阀块(破碎器)

Length: 350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 23

4649408

Installation route: 过渡阀块(破碎器)~止动阀(破碎器)

Length: 1,150 mm
Specification: DN19;4SP-12;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 26A

4641744

Installation route: 控制阀(破碎器)~回油铁管(分配阀)

Length: 2,150 mm
Specification: DN19;1SN-12;7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 43

TH4437738

Installation route: 回转马达~过渡阀块(破碎器)

Length: 1,000 mm
Specification: DN10;1SN-06;7Mpa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 40

4274569

Installation route: 过渡阀块(破碎器)~铁管(破碎器)

Length: 600 mm
Specification: DN19;1SN-12;7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 45°美制内螺纹平面密封

View full repair specifications
