Individual hose record
4462116 Hose Repair Specifications
Excavator · Hitachi · ZX80 · Swing Motor
Finished length900 mm
Locate this hose

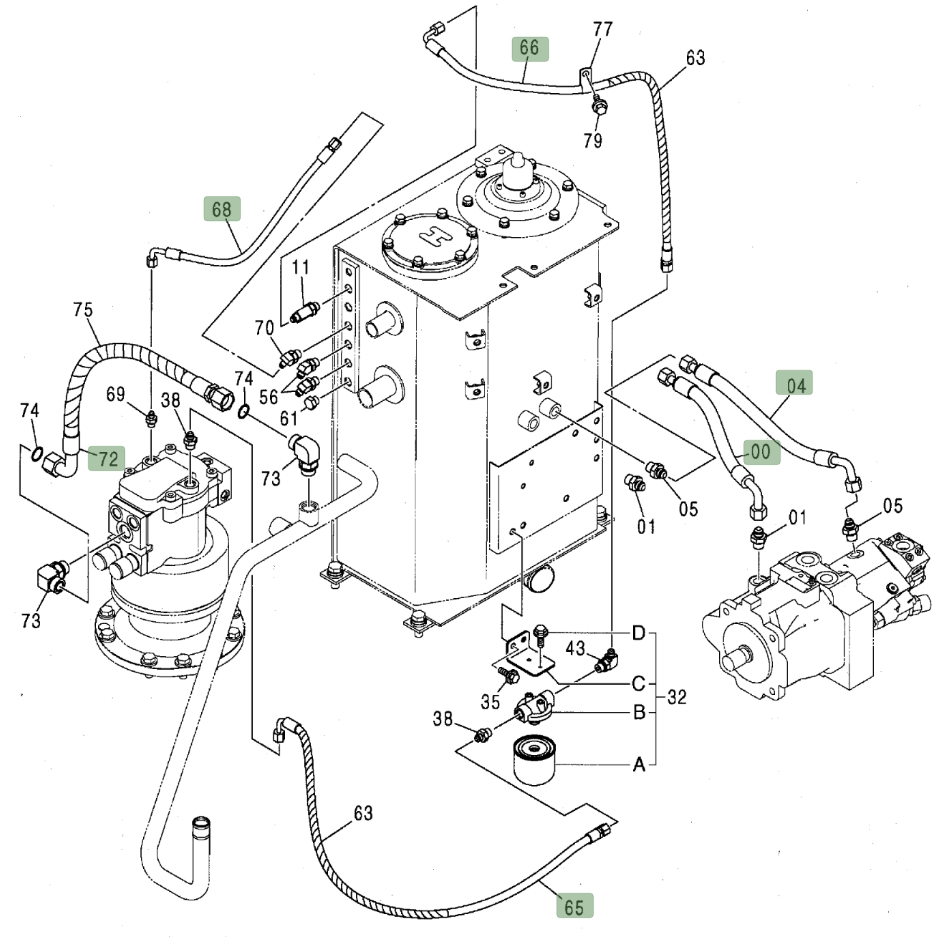

Installation diagram — Pipe No. 65
Locate Pipe No. 65 in the diagram, then confirm part number 4462116 before removing the hose.
Repair specifications
- Part number
- 4462116
- Diagram pipe number
- 65
- Installation route
- 回转马达~先导滤芯
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 900 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
Same system
Related Hoses
Diagram Pipe No. 72
4462476
Installation route: Swing motor → return steel line (hydraulic tank)Original Chinese: 回转马达~回油铁管(液压油箱)
- Length
- 750 mm
- Specification
- DN19;1SN-12;10.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
