Individual hose record
4350174 Hose Repair Specifications
Excavator · Hitachi · EX550LC · Control Valve
Finished length1,000 mm
Locate this hose

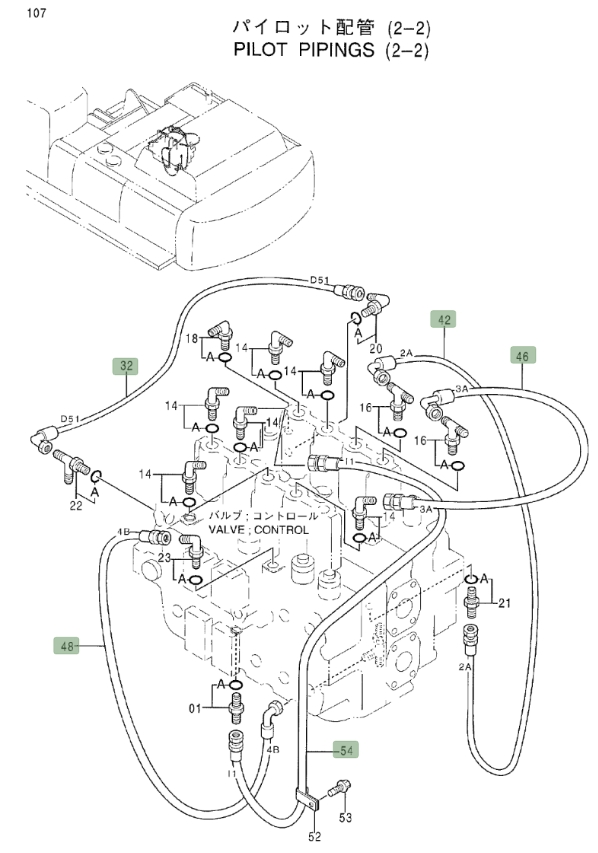

Installation diagram — Pipe No. 42
Locate Pipe No. 42 in the diagram, then confirm part number 4350174 before removing the hose.
Repair specifications
- Part number
- 4350174
- Diagram pipe number
- 42
- Installation route
- 分配阀上右~分配阀下
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 1,000 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
