Individual hose record
4284184 Hose Repair Specifications
Excavator · Hitachi · EX330LC-5 · Control Lever
Finished length1,600 mm
Locate this hose

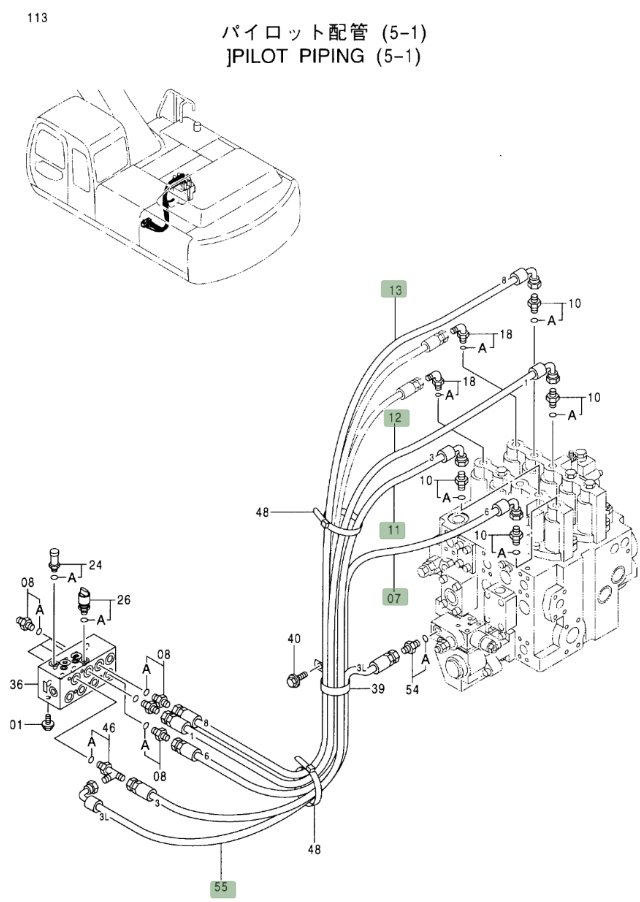

Installation diagram — Pipe No. 7
Locate Pipe No. 7 in the diagram, then confirm part number 4284184 before removing the hose.
Repair specifications
- Part number
- 4284184
- Diagram pipe number
- 7
- Installation route
- 中转接头~分配阀上
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 1,600 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
