Individual hose record

KBJ12490 Hose Repair Specifications

Excavator · Case · CX300B · Boom Assembly

Finished length1,400 mm

Locate this hose

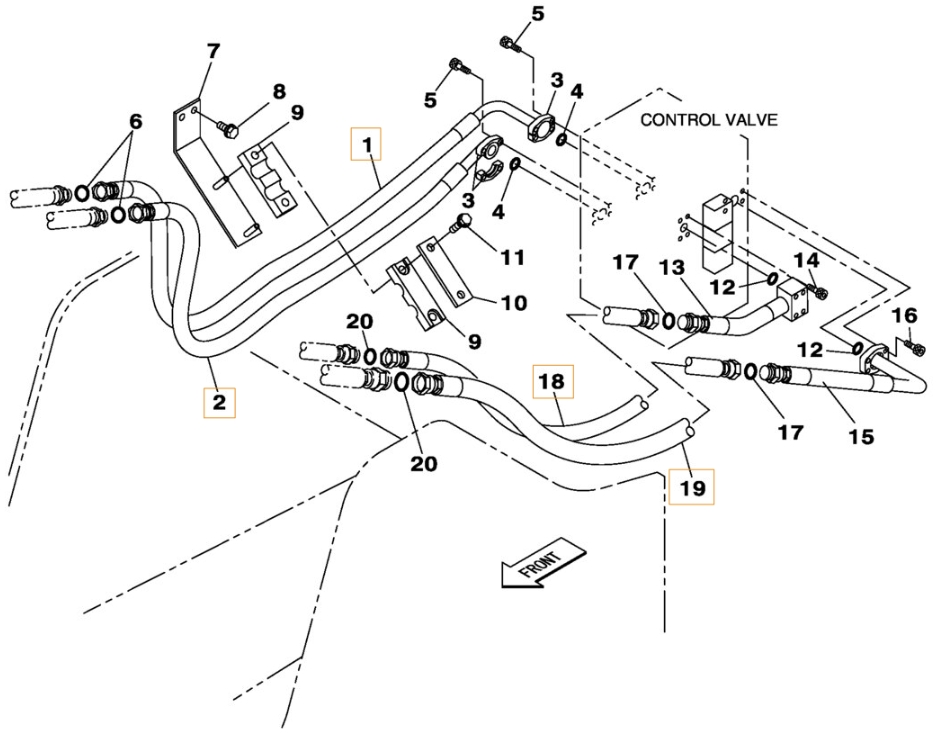

Installation diagram — Pipe No. 19

Locate Pipe No. 19 in the diagram, then confirm part number KBJ12490 before removing the hose.

Part number: KBJ12490
Diagram pipe number: 19
Installation route: 大臂左1
Hose specification: DN25;4SP-16;32.5MPa
Finished length: 1,400 mm
Working pressure: 32.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 14

Installation route: 大臂油缸

Length: 790 mm
Specification: DN19;4SP-12;35MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 英制外螺纹平面密封

Diagram Pipe No. 18

Installation route: 大臂左2

Length: 1,350 mm
Specification: DN25;4SP-16;32.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
