Individual hose record

4224498 Hose Repair Specifications

Excavator · Hitachi · EX160WD · Pedal

Finished length1,780 mm

Locate this hose

Installation diagram — Pipe No. 52

Locate Pipe No. 52 in the diagram, then confirm part number 4224498 before removing the hose.

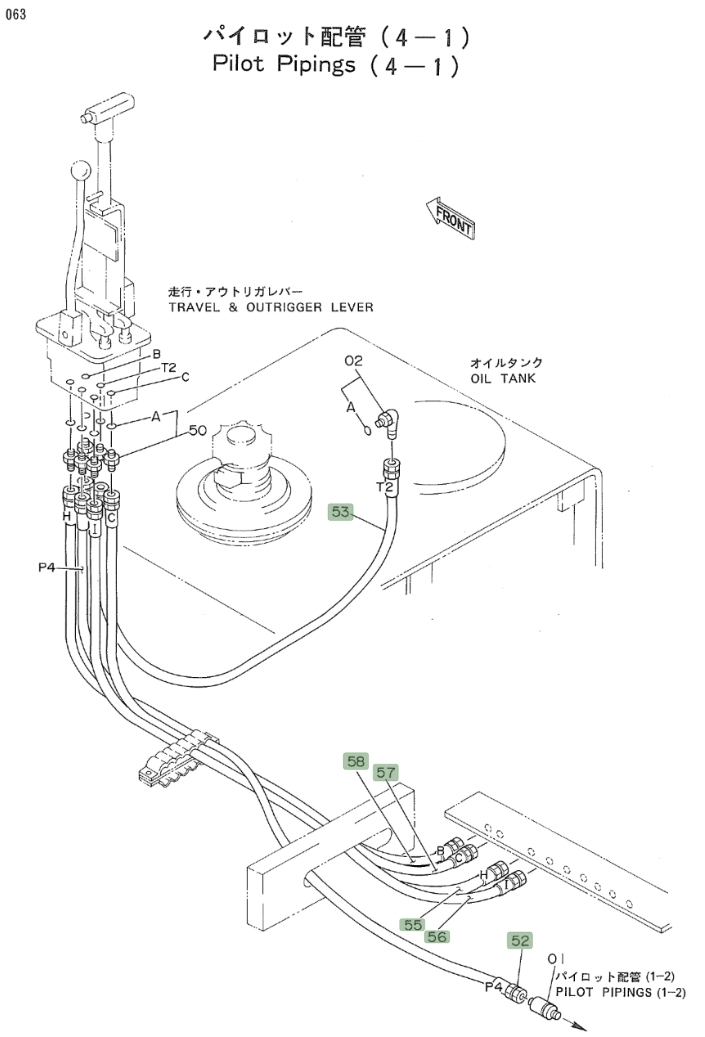

Hitachi EX160WD installation diagram showing hydraulic hose 4224498 at Pipe No. 52 — Hitachi EX160WDPart 4224498 · Pipe No. 52Open full-size diagram

Repair specifications

Part number: 4224498
Diagram pipe number: 52
Installation route: 行走推杆~进回油阀
Hose specification: DN10;1层纤维-6;14MPa
Finished length: 1,780 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1
