Individual hose record
4721464 Hose Repair Specifications
Excavator · Hitachi · ZX130-5N · Hydraulic Pump
Finished length680 mm
Locate this hose

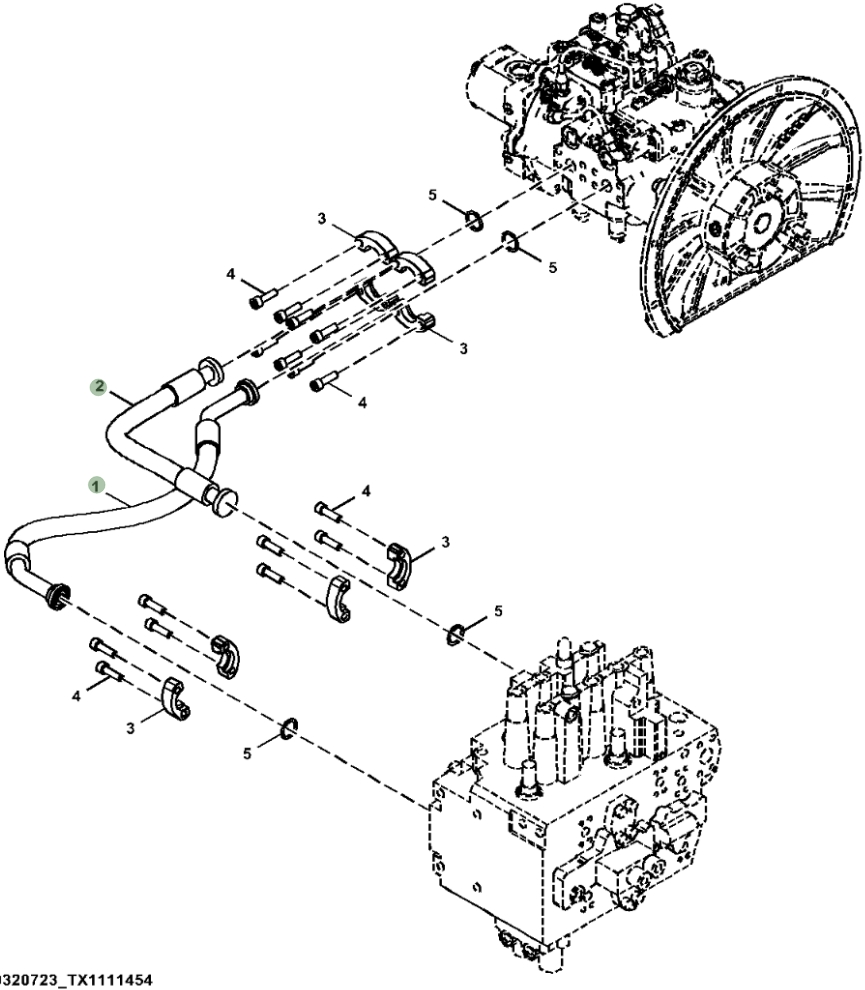

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 4721464 before removing the hose.
Repair specifications
- Part number
- 4721464
- Diagram pipe number
- 2
- Installation route
- 液压泵~分配阀(进油)
- Hose specification
- DN16;4SP-10;38Mpa
- Finished length
- 680 mm
- Working pressure
- 38 MPa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Quantity
- 1
