Individual hose record
DS20111708 Hose Repair Specifications
Excavator · Doosan · DX140W-5 · Pedal
Finished length2,340 mm
Locate this hose

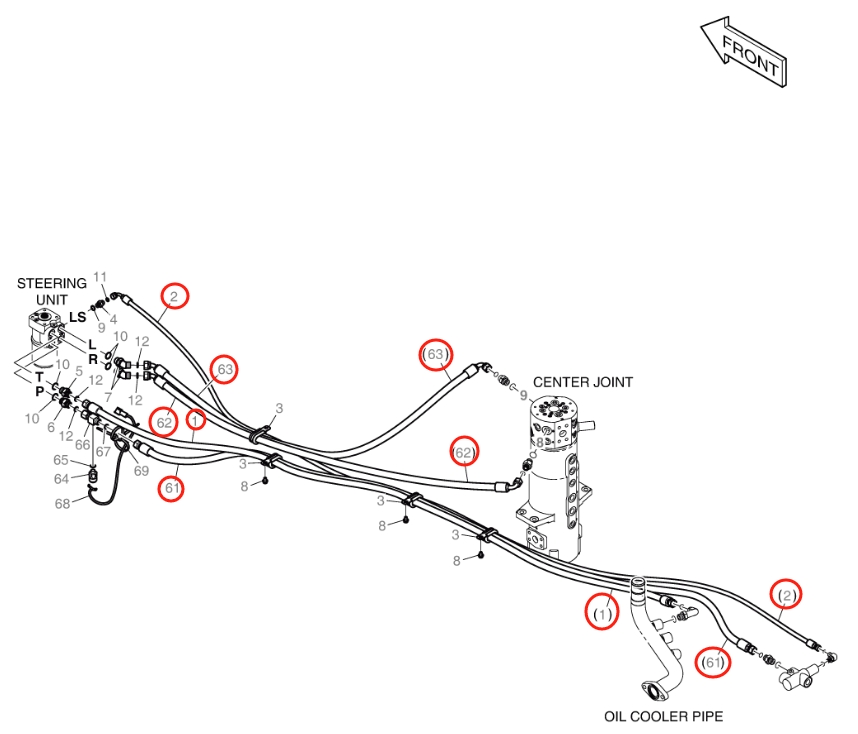

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number DS20111708 before removing the hose.
Repair specifications
- Part number
- DS20111708
- Diagram pipe number
- 1
- Installation route
- 方向盘T口~回油铁管(液压油箱)
- Hose specification
- DN13;1SN-08;16MPa
- Finished length
- 2,340 mm
- Working pressure
- 16 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
