Individual hose record

4385282 Hose Repair Specifications

Excavator · Hitachi · ZX160LC · Grease Lines

Finished length2,610 mm

Locate this hose

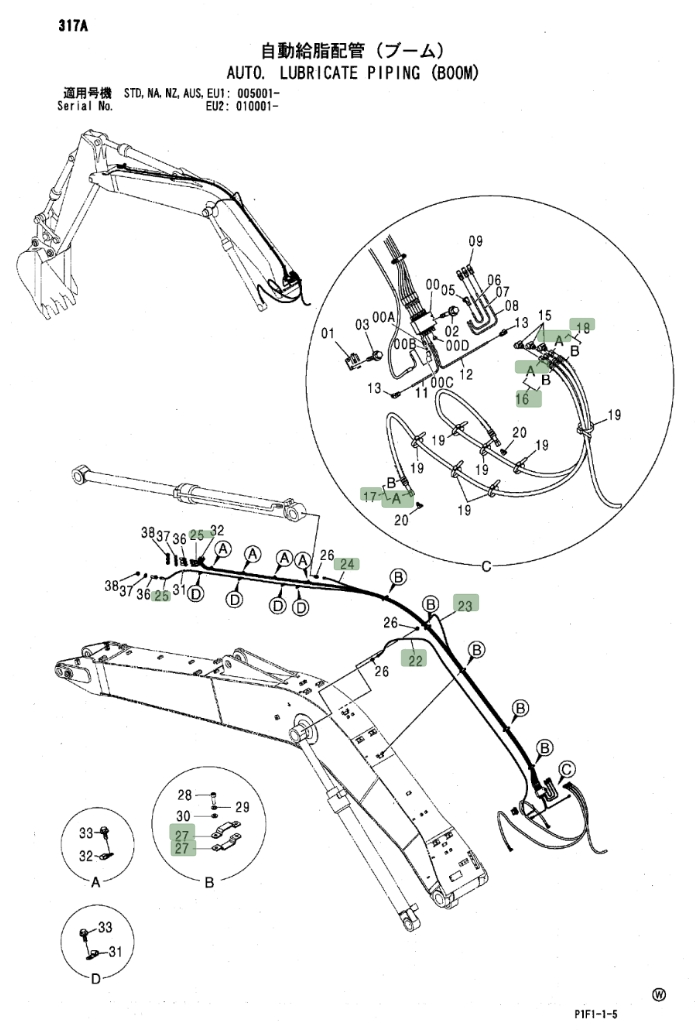

Installation diagram — Pipe No. 23

Locate Pipe No. 23 in the diagram, then confirm part number 4385282 before removing the hose.

Hitachi ZX160LC installation diagram showing hydraulic hose 4385282 at Pipe No. 23 — Hitachi ZX160LCPart 4385282 · Pipe No. 23Open full-size diagram

Repair specifications

Part number: 4385282
Diagram pipe number: 23
Installation route: Right boom-cylinder grease lineOriginal Chinese: 右大臂油缸黄油管
Hose specification: DN5;2层纤维-3;14MPa
Finished length: 2,610 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 公制卡套式
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 18

4479914

Installation route: 大臂油缸黄油管

Length: 700 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 37

4472408

Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管

Length: 340 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 24

4385283

Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管

Length: 3,090 mm
Specification: DN5;2层纤维-3;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 公制卡套式

View full repair specifications

Diagram Pipe No. 25

4620450

Installation route: 大臂黄油管

Length: 5,460 mm
Specification: DN5;2层纤维-3;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 公制卡套式

View full repair specifications

Diagram Pipe No. 25

4385287

Installation route: 大臂黄油管

Length: 5,420 mm
Specification: DN5;2层纤维-3;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 公制卡套式

View full repair specifications

Diagram Pipe No. 5

4429280

Installation route: Left boom-cylinder grease lineOriginal Chinese: 左大臂油缸黄油管

Length: 2,700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications
