Individual hose record

4429280 Hose Repair Specifications

Excavator · Hitachi · ZX160LC · Grease Lines

Finished length2,700 mm

Locate this hose

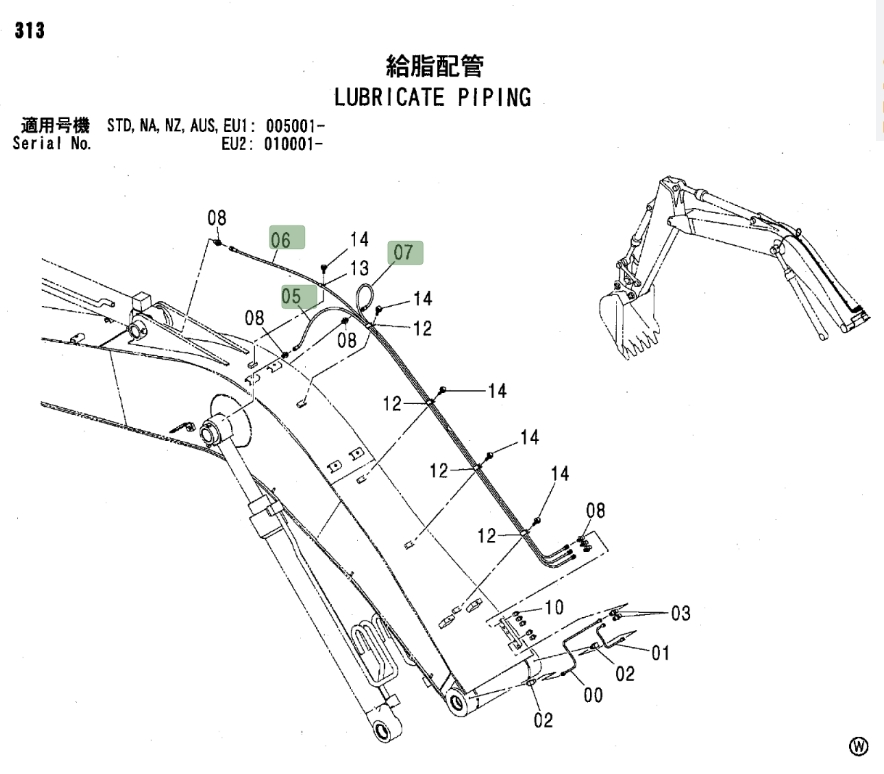

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number 4429280 before removing the hose.

Hitachi ZX160LC installation diagram showing hydraulic hose 4429280 at Pipe No. 5 — Hitachi ZX160LCPart 4429280 · Pipe No. 5Open full-size diagram

Repair specifications

Part number: 4429280
Diagram pipe number: 5
Installation route: Left boom-cylinder grease lineOriginal Chinese: 左大臂油缸黄油管
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,700 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1
