Individual hose record
9209342 Hose Repair Specifications
Excavator · Hitachi · ZX135US · Swing Motor
Finished length1,900 mm
Locate this hose

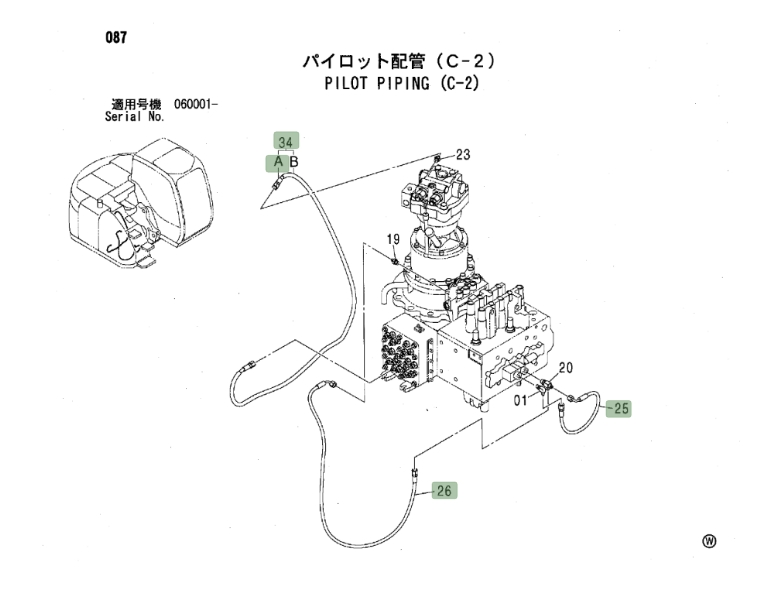

Installation diagram — Pipe No. 34
Locate Pipe No. 34 in the diagram, then confirm part number 9209342 before removing the hose.
Repair specifications
- Part number
- 9209342
- Diagram pipe number
- 34
- Installation route
- 回转马达~中转接头
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 1,900 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
