Individual hose record
4451924 Hose Repair Specifications
Excavator · Hitachi · ZX135US · Swing Motor
Finished length650 mm
Locate this hose

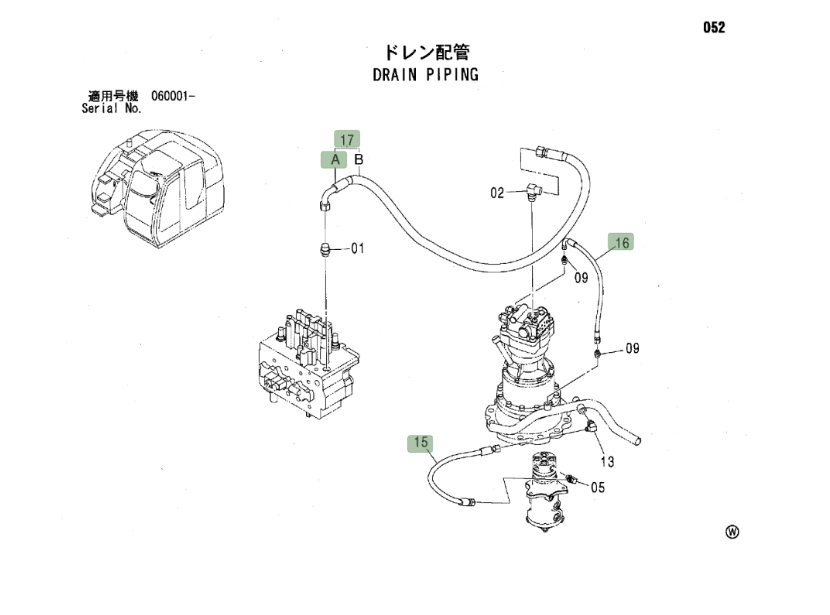

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number 4451924 before removing the hose.
Repair specifications
- Part number
- 4451924
- Diagram pipe number
- 16
- Installation route
- Swing motor → return steel line (hydraulic tank)Original Chinese: 回转马达~回油铁管(液压油箱)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 650 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
