Individual hose record
4203161 Hose Repair Specifications
Excavator · Hitachi · EX100 · Control Valve
Finished length450 mm
Locate this hose

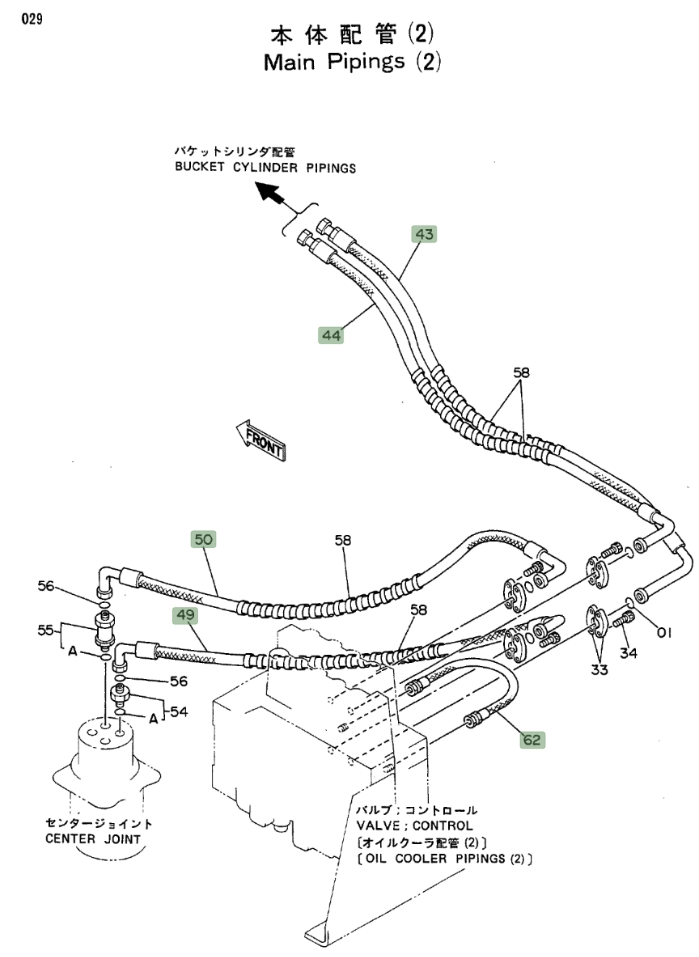

Installation diagram — Pipe No. 62
Locate Pipe No. 62 in the diagram, then confirm part number 4203161 before removing the hose.
Repair specifications
- Part number
- 4203161
- Diagram pipe number
- 62
- Installation route
- 分配阀右~分配阀右
- Hose specification
- DN6;2SN-04;27.5MPa
- Finished length
- 450 mm
- Working pressure
- 27.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
