Individual hose record
4203111 Hose Repair Specifications
Excavator · Hitachi · EX100 · Control Valve
Finished length480 mm
Locate this hose

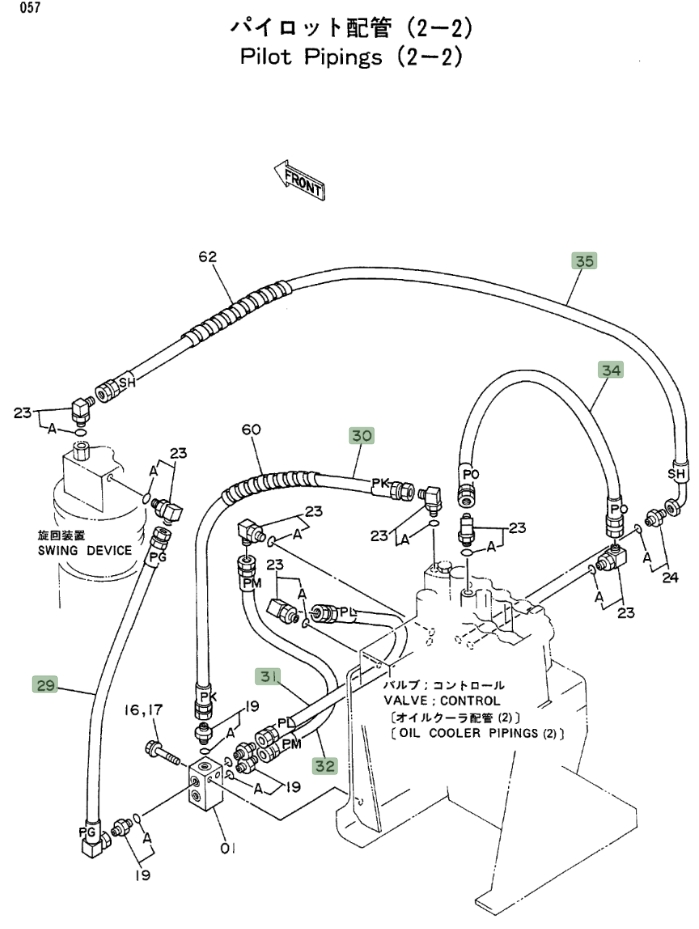

Installation diagram — Pipe No. 35
Locate Pipe No. 35 in the diagram, then confirm part number 4203111 before removing the hose.
Repair specifications
- Part number
- 4203111
- Diagram pipe number
- 35
- Installation route
- 分配阀右~回转马达
- Hose specification
- DN6;2层纤维-4;14MPa
- Finished length
- 480 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
