Individual hose record
4710123 Hose Repair Specifications
Excavator · Hitachi · ZX300LC-6N · Hydraulic Tank
Finished length4,500 mm
Locate this hose

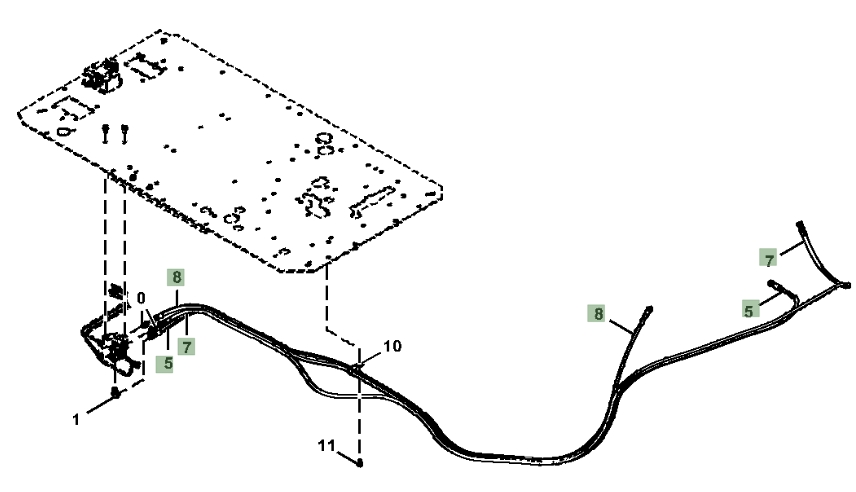

Installation diagram — Pipe No. 7
Locate Pipe No. 7 in the diagram, then confirm part number 4710123 before removing the hose.
Repair specifications
- Part number
- 4710123
- Diagram pipe number
- 7
- Installation route
- 液压油箱~进回油阀
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 4,500 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
