Individual hose record

4473367 Hose Repair Specifications

Excavator · Hitachi · ZX210W · Attachments

Finished length580 mm

Locate this hose

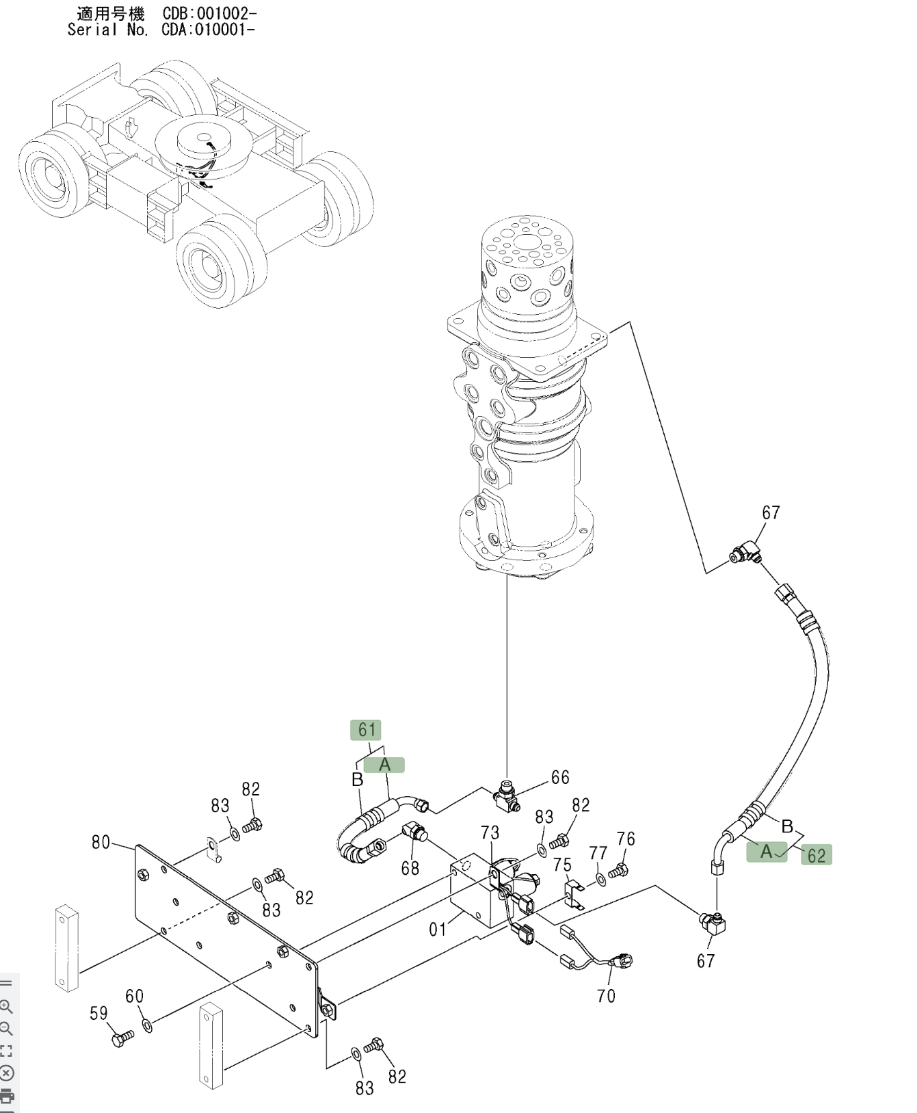

Installation diagram — Pipe No. 62A

Locate Pipe No. 62A in the diagram, then confirm part number 4473367 before removing the hose.

Hitachi ZX210W installation diagram showing hydraulic hose 4473367 at Pipe No. 62A — **Hitachi ZX210W**Part 4473367 · Pipe No. 62AOpen full-size diagram

Repair specifications

Part number: 4473367
Diagram pipe number: 62A
Installation route: 回转接头~电磁阀(推土铲)
Hose specification: DN10;1SN-6;18MPa
Finished length: 580 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥双六角
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1
