Individual hose record
4262277 Hose Repair Specifications
Excavator · Hitachi · ZX75US-5N · Control Lever
Finished length1,700 mm
Locate this hose

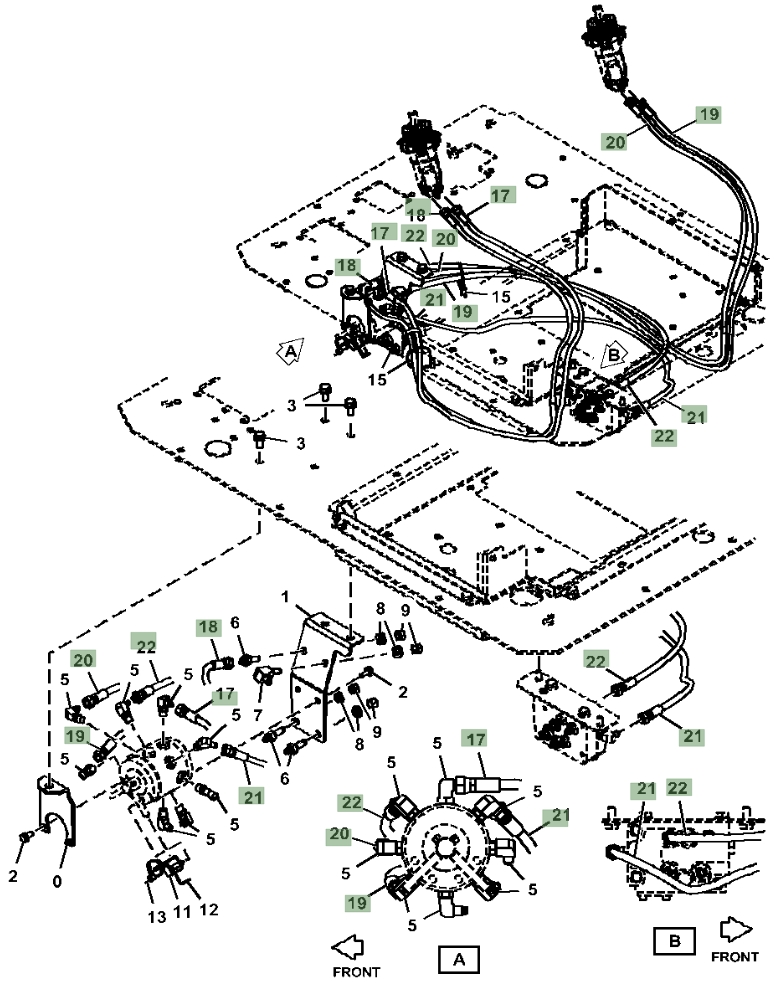

Installation diagram — Pipe No. 18
Locate Pipe No. 18 in the diagram, then confirm part number 4262277 before removing the hose.
Repair specifications
- Part number
- 4262277
- Diagram pipe number
- 18
- Installation route
- 左手柄~接线板(手柄)
- Hose specification
- DN6;1SN-04;7MPa
- Finished length
- 1,700 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
