Individual hose record
4705861 Hose Repair Specifications
Excavator · Hitachi · ZX75US-5N · Control Lever
Finished length1,100 mm
Locate this hose

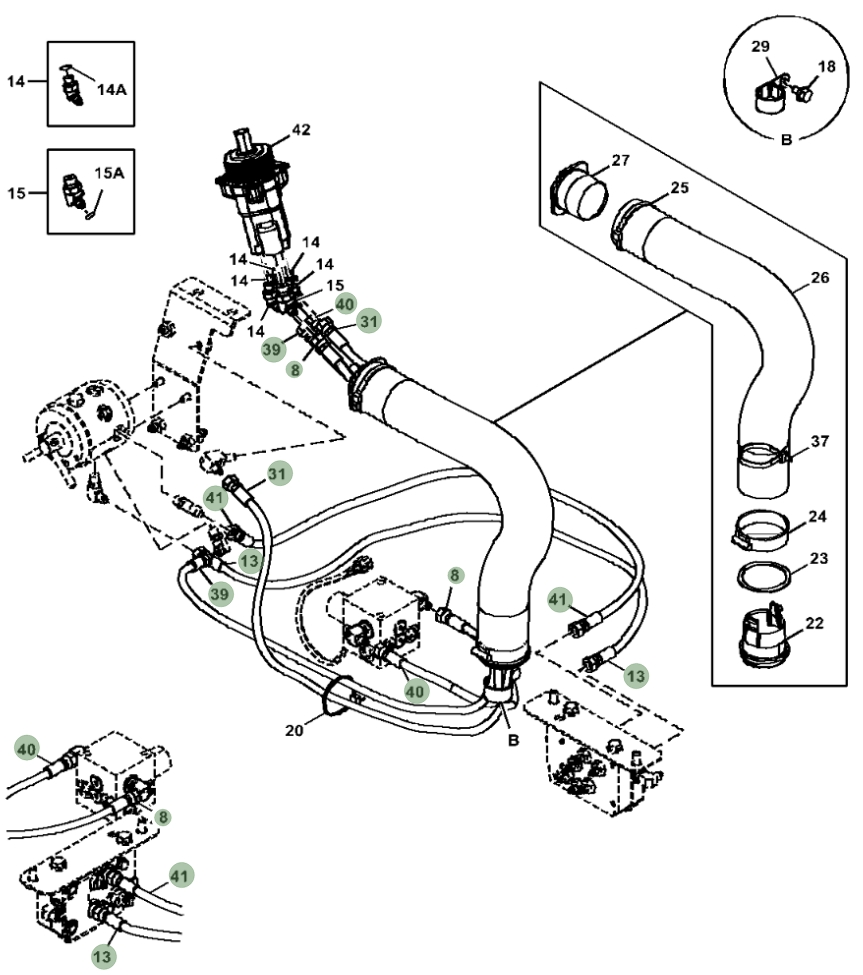

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number 4705861 before removing the hose.
Repair specifications
- Part number
- 4705861
- Diagram pipe number
- 8
- Installation route
- 左手柄~进回油阀
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 1,100 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
