- Length
- 3,100 mm
- Specification
- DN10;1SN-6;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
Individual hose record
4648202 Hose Repair Specifications
Excavator · Hitachi · ZX240LC-3 · Attachments – Other Kits
Finished length3,150 mm
Locate this hose

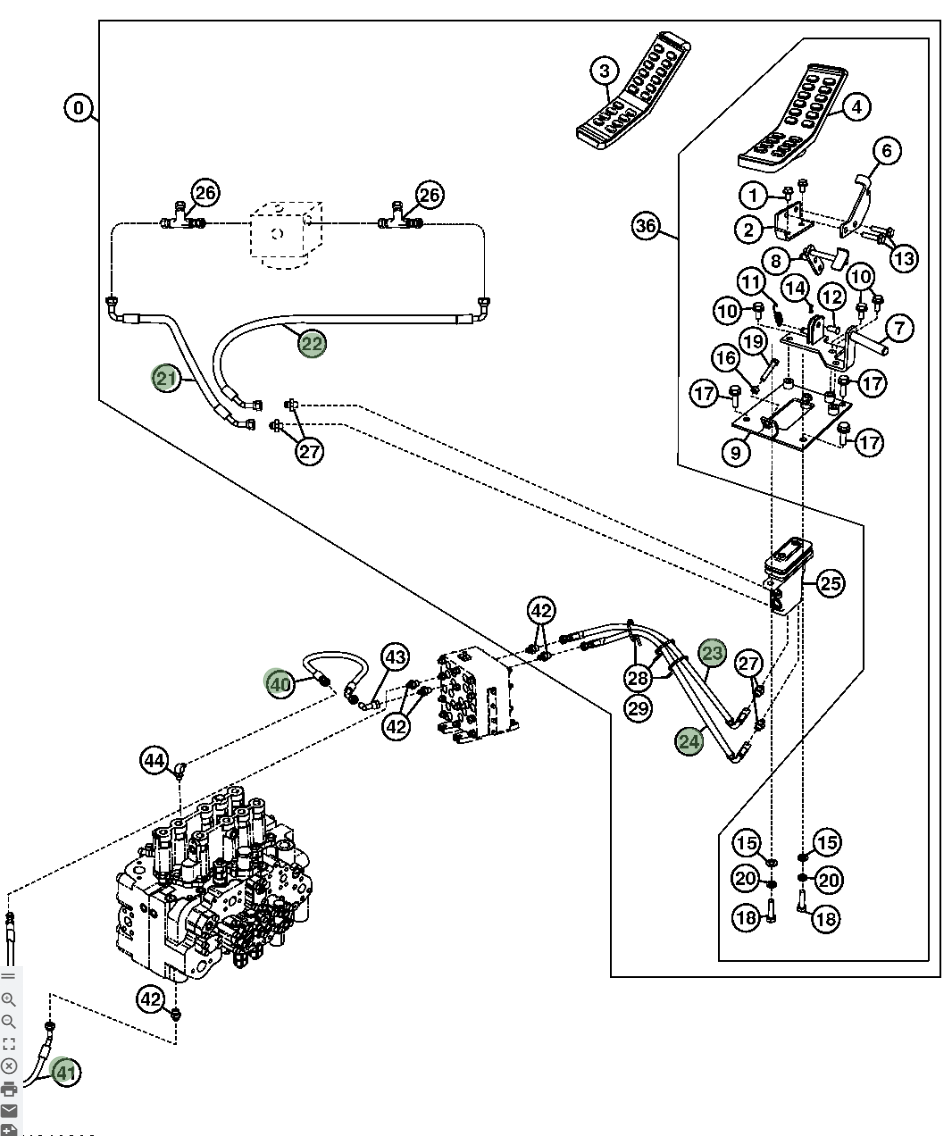

Installation diagram — Pipe No. 24
Locate Pipe No. 24 in the diagram, then confirm part number 4648202 before removing the hose.
Repair specifications
- Part number
- 4648202
- Diagram pipe number
- 24
- Installation route
- 单踏板~中转接头
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 3,150 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
