Individual hose record
4452733 Hose Repair Specifications
Excavator · Hitachi · ZX135US-3 · Control Valve
Finished length450 mm
Locate this hose

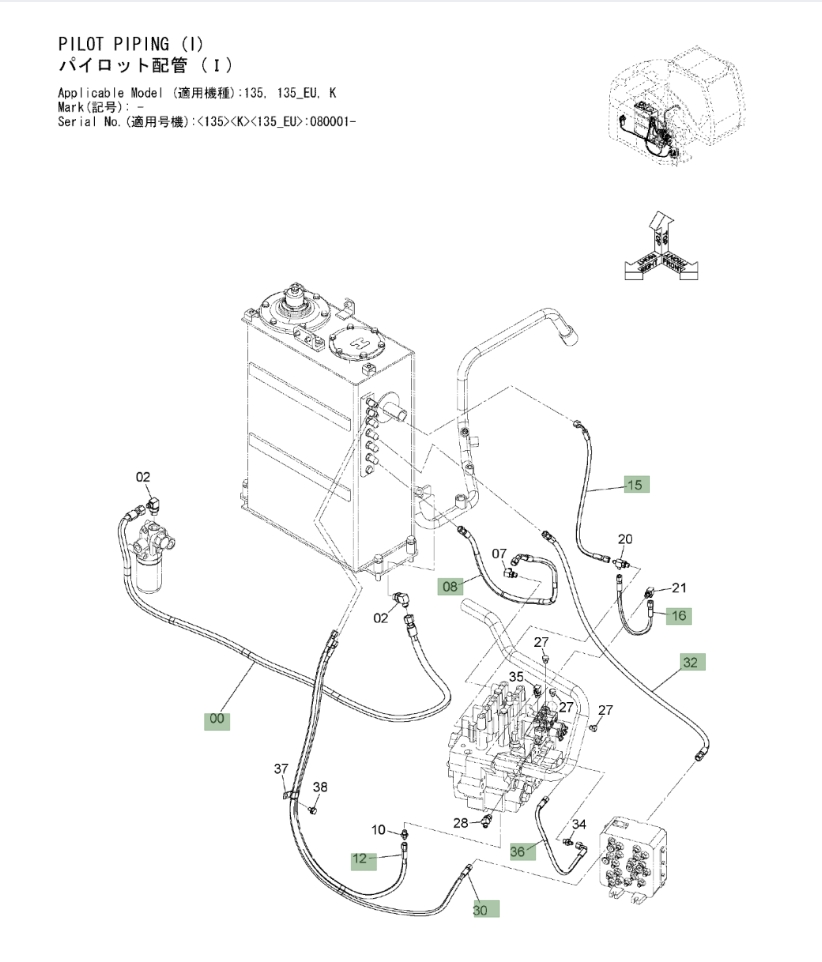

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number 4452733 before removing the hose.
Repair specifications
- Part number
- 4452733
- Diagram pipe number
- 16
- Installation route
- 分配阀左~分配阀后
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 450 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
