Individual hose record
4632667 Hose Repair Specifications
Excavator · Hitachi · ZX670LC-5G · Solenoid Valve
Finished length5,500 mm
Locate this hose

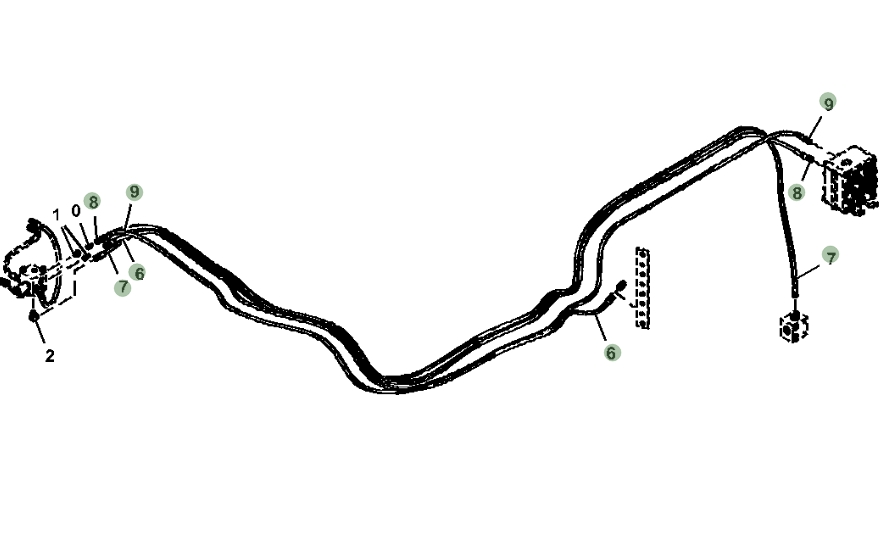

Installation diagram — Pipe No. 7
Locate Pipe No. 7 in the diagram, then confirm part number 4632667 before removing the hose.
Repair specifications
- Part number
- 4632667
- Diagram pipe number
- 7
- Installation route
- 电磁阀~进回油阀
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 5,500 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
