- Length
- 400 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
Individual hose record
4691498 Hose Repair Specifications
Excavator · Hitachi · ZX120-3 · Attachments – Breaker
Finished length530 mm
Locate this hose

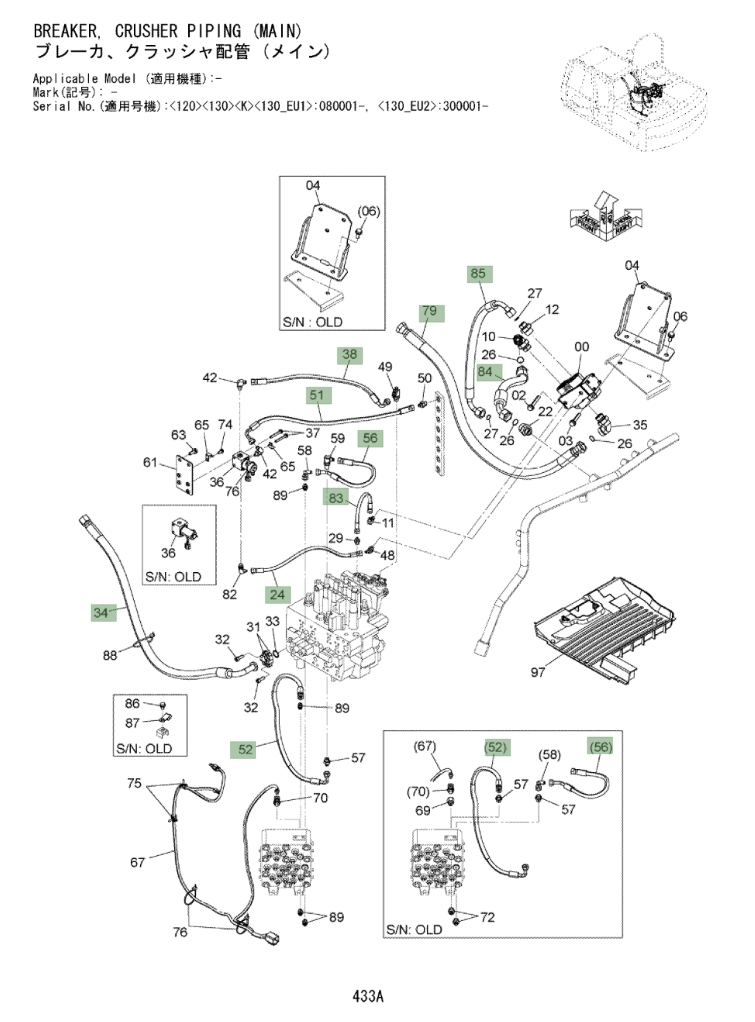

Installation diagram — Pipe No. 84
Locate Pipe No. 84 in the diagram, then confirm part number 4691498 before removing the hose.
Repair specifications
- Part number
- 4691498
- Diagram pipe number
- 84
- Installation route
- 过渡阀块(破碎器)~回油铁管(分配阀)
- Hose specification
- DN25;1SN-16;7Mpa
- Finished length
- 530 mm
- Working pressure
- 7 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45°美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
- Length
- 1,900 mm
- Specification
- DN10;2SN-06;34.5MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Length
- 350 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Length
- 520 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Length
- 750 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Length
- 1,000 mm
- Specification
- DN6;1SN-04;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Length
- 700 mm
- Specification
- DN6;1SN-4;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Length
- 520 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
