Individual hose record
4330138 Hose Repair Specifications
Excavator · Hitachi · EX220LC-3 · Pedal
Finished length1,570 mm
Locate this hose

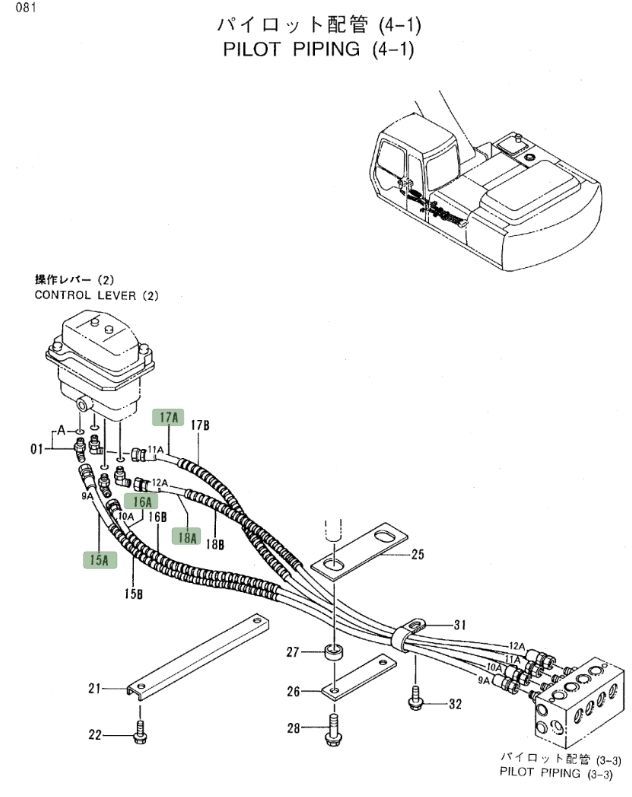

Installation diagram — Pipe No. 18A
Locate Pipe No. 18A in the diagram, then confirm part number 4330138 before removing the hose.
Repair specifications
- Part number
- 4330138
- Diagram pipe number
- 18A
- Installation route
- 行走踏板~中转接头(行走踏板)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 1,570 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
