Individual hose record

DS2094354 Hose Repair Specifications

Excavator · Doosan · DX80R · Attachments – Lock Valve

Finished length3,700 mm

Locate this hose

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number DS2094354 before removing the hose.

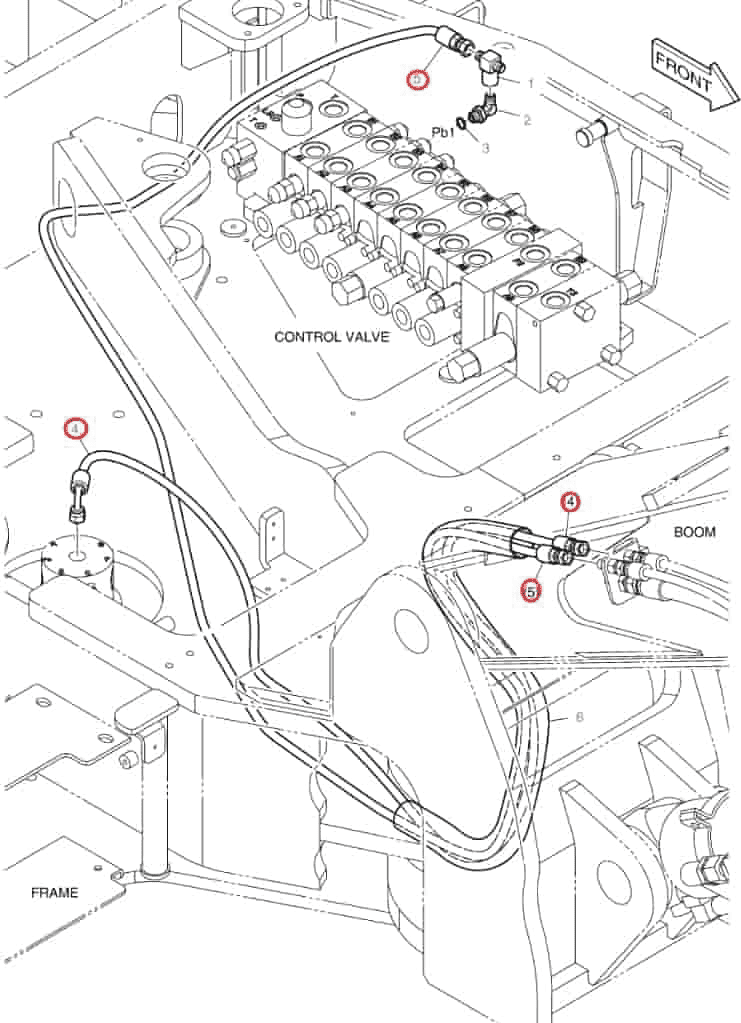

Doosan DX80R installation diagram showing hydraulic hose DS2094354 at Pipe No. 5 — **Doosan DX80R**Part DS2094354 · Pipe No. 5Open full-size diagram

Repair specifications

Part number: DS2094354
Diagram pipe number: 5
Installation route: 分配阀PB1口~接线板(大臂油缸锁止阀)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,700 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 29

2184-1046D91

Installation route: 右分节油缸锁止阀~接线板(分节油缸锁止阀)

Length: 1,440 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 5

DS2094354

Installation route: 接线板(分节油缸锁止阀)~液压油箱

Length: 3,700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 29

2184-1046D61

Installation route: 右分节油缸锁止阀~接线板(分节油缸锁止阀)

Length: 1,750 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 30

2184-1045D104

Installation route: 左分节油缸锁止阀~接线板(分节油缸锁止阀)

Length: 2,400 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 18

2184-1045D163

Installation route: 小臂油缸锁止阀~接线板(小臂油缸锁止阀)

Length: 1,330 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 18

2184-1045D196

Installation route: 小臂油缸锁止阀~接线板(小臂油缸锁止阀)

Length: 1,730 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 31

2184-1045D152

Installation route: 左分节油缸锁止阀~接线板(分节油缸锁止阀)

Length: 2,000 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 27

2184-1046D41

Installation route: 右分节油缸锁止阀~接线板(分节油缸锁止阀)

Length: 1,385 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications
