Individual hose record

KEJ0396 Hose Repair Specifications

Excavator · Case · CX460 · Hydraulic Tank

Finished length1,000 mm

Locate this hose

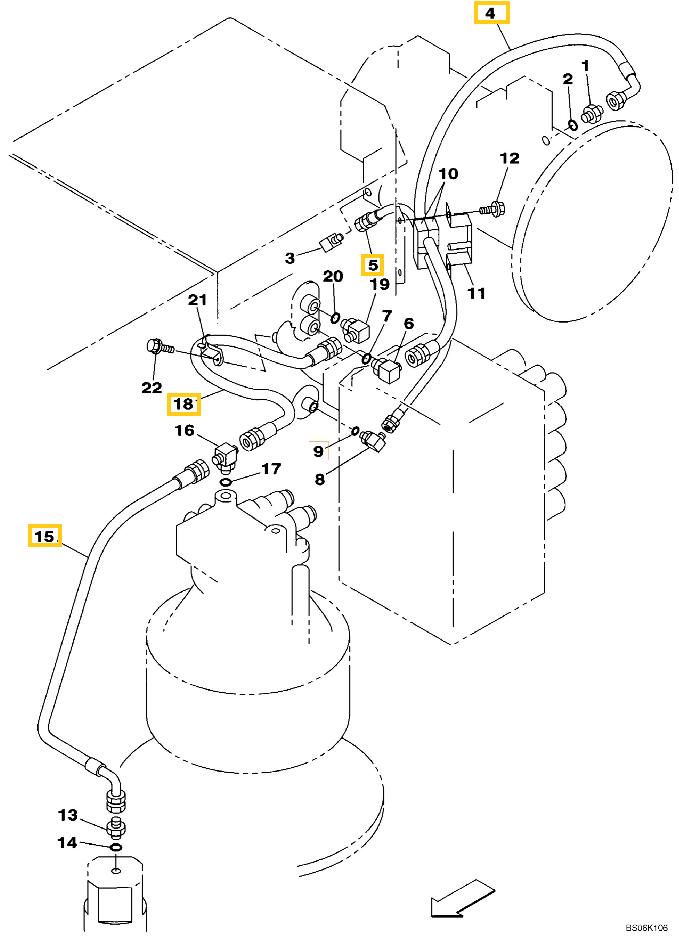

Installation diagram — Pipe No. 18

Locate Pipe No. 18 in the diagram, then confirm part number KEJ0396 before removing the hose.

Part number: KEJ0396
Diagram pipe number: 18
Installation route: 液压油箱~回转马达
Hose specification: DN19;2SN-12;21.5MPa
Finished length: 1,000 mm
Working pressure: 21.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 109

Installation route: 液压油箱~风扇马达

Length: 2,000 mm
Specification: DN13;4SH-08;41.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 92

Installation route: 液压油箱~回转马达过渡阀块

Length: 1,020 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
