Individual hose record
4446905 Hose Repair Specifications
Excavator · Hitachi · EX1200-7 · Attachments
Finished length850 mm
Locate this hose

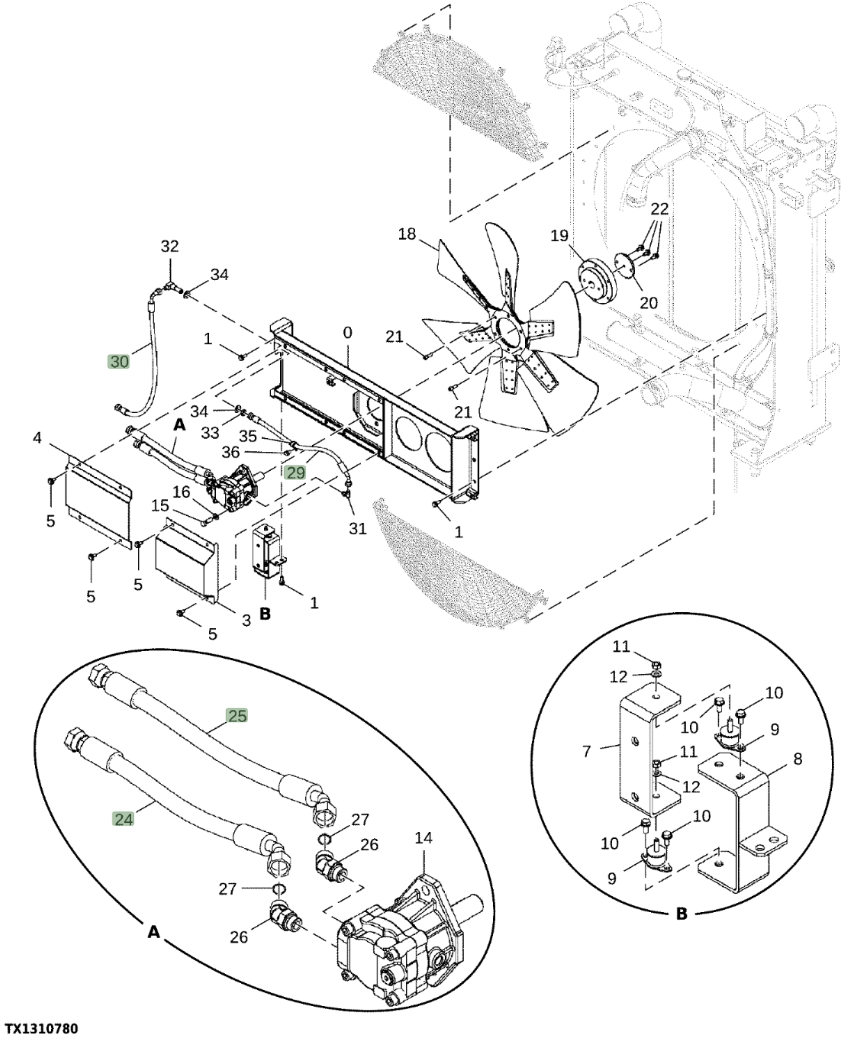

Installation diagram — Pipe No. 30
Locate Pipe No. 30 in the diagram, then confirm part number 4446905 before removing the hose.
Repair specifications
- Part number
- 4446905
- Diagram pipe number
- 30
- Installation route
- 风扇马达~过渡阀块(散热器)
- Hose specification
- DN13;2SN-08;27.5MPa
- Finished length
- 850 mm
- Working pressure
- 27.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
