Individual hose record
DS2119236 Hose Repair Specifications
Excavator · Doosan · DX160LC-5 · Control Valve
Finished length1,270 mm
Locate this hose

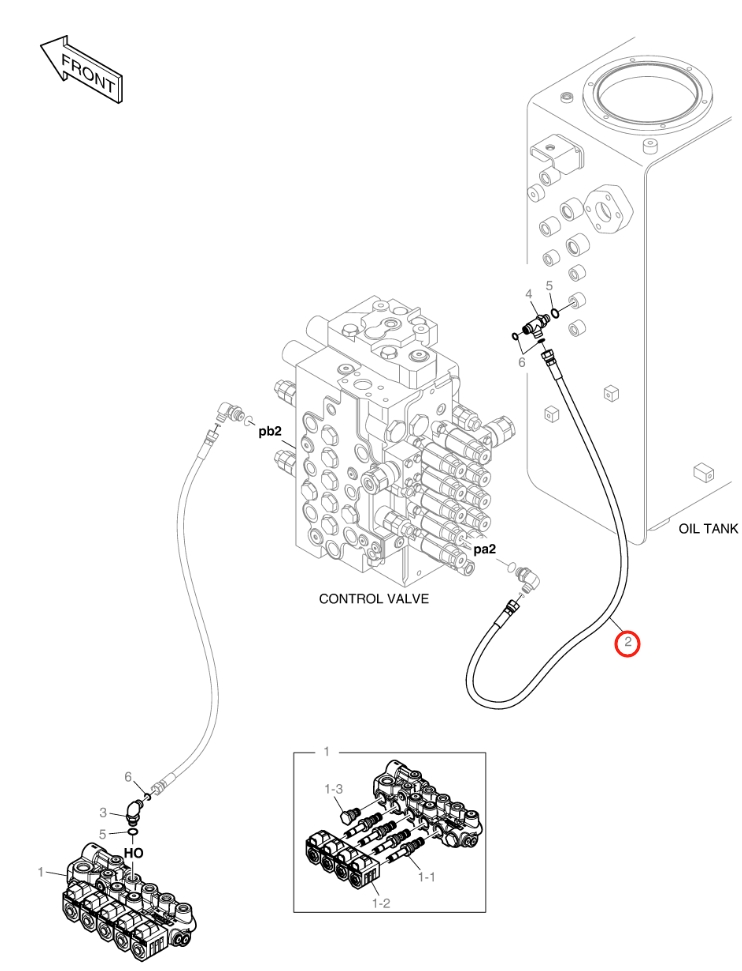

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number DS2119236 before removing the hose.
Repair specifications
- Part number
- DS2119236
- Diagram pipe number
- 2
- Installation route
- 分配阀PA2口~液压油箱
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,270 mm
- Working pressure
- 22.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
