Individual hose record

4451543 Hose Repair Specifications

Excavator · Hitachi · ZX330LC · Attachments – Breaker

Finished length1,400 mm

Locate this hose

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 4451543 before removing the hose.

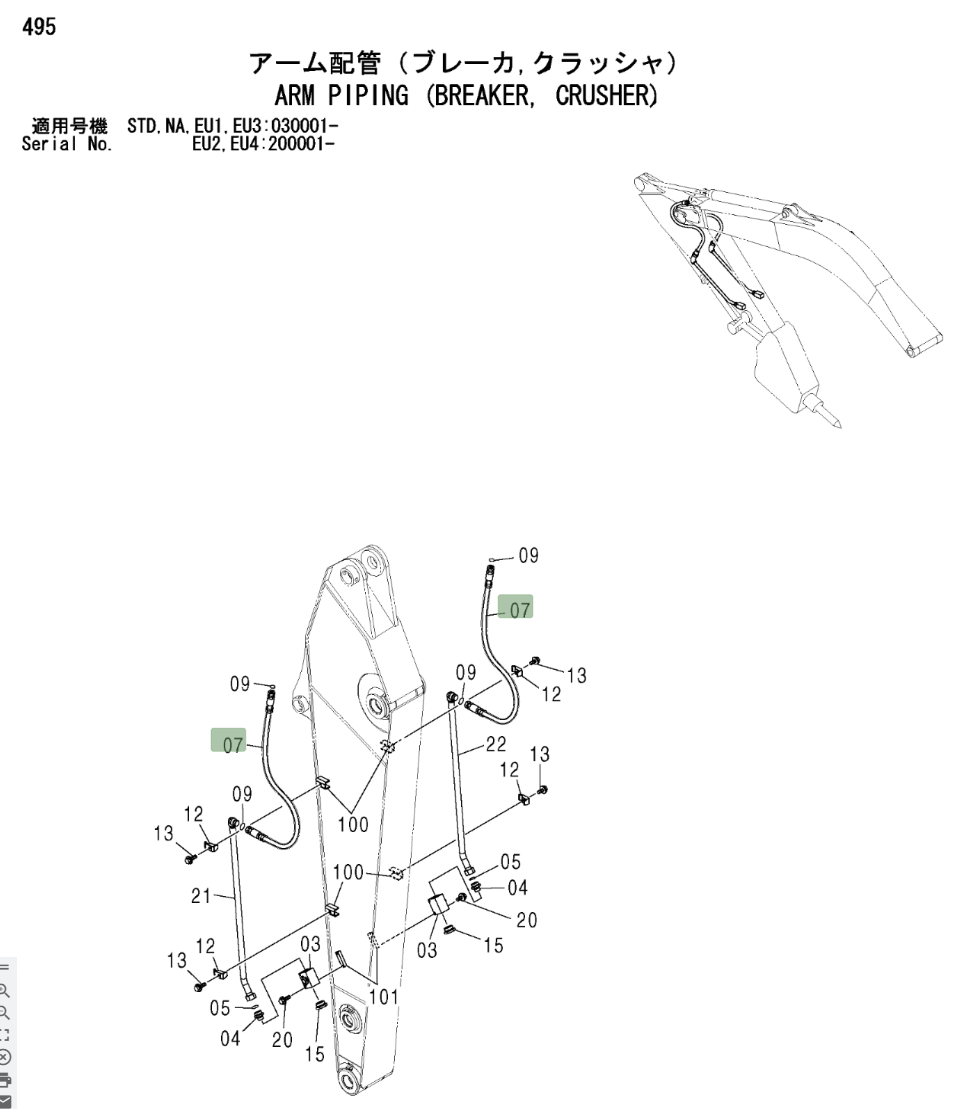

Hitachi ZX330LC installation diagram showing hydraulic hose 4451543 at Pipe No. 7 — **Hitachi ZX330LC**Part 4451543 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: 4451543
Diagram pipe number: 7
Installation route: 小臂破碎器截止阀
Hose specification: DN25;4SP-16;35Mpa
Finished length: 1,400 mm
Working pressure: 35 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 52

4269846

Installation route: 流速切换阀~过渡阀块(流速切换)

Length: 1,300 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 36

9173059

Installation route: 大臂(破碎器)~铁管(破碎器)

Length: 1,300 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 13

4273356

Installation route: 控制阀(破碎器)~过渡阀块(破碎器)

Length: 770 mm
Specification: DN19;4SP-12;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 15

4270447

Installation route: 控制阀(破碎器)~电磁阀(破碎器)

Length: 3,200 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 13

4250888

Installation route: 大臂(后段)~卸压安全阀(破碎器)

Length: 1,200 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 36A

4265832

Installation route: 大臂(破碎器)~铁管(破碎器)

Length: 1,300 mm
Specification: DN25;4SH-16;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 29

4387816

Installation route: 大臂(破碎器)~控制阀(破碎器)

Length: 2,200 mm
Specification: DN10;2SN-6;34.5MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 26A

4448556

Installation route: 大臂(破碎器)~接线板(破碎器)

Length: 1,050 mm
Specification: DN10;2SN-6;34.5MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
