Kobelco SK210-6E Workshop Hose Notes

Workshop notebook pages related to the Kobelco SK210-6E may help identify the machine or hose. Confirm all manufacturing specifications on the machine.

Technician notes

Workshop measurements

These notebook pages may help identify a hose or compare a recorded length. Confirm the final length, fittings, pressure rating, and routing on the machine before fabrication.

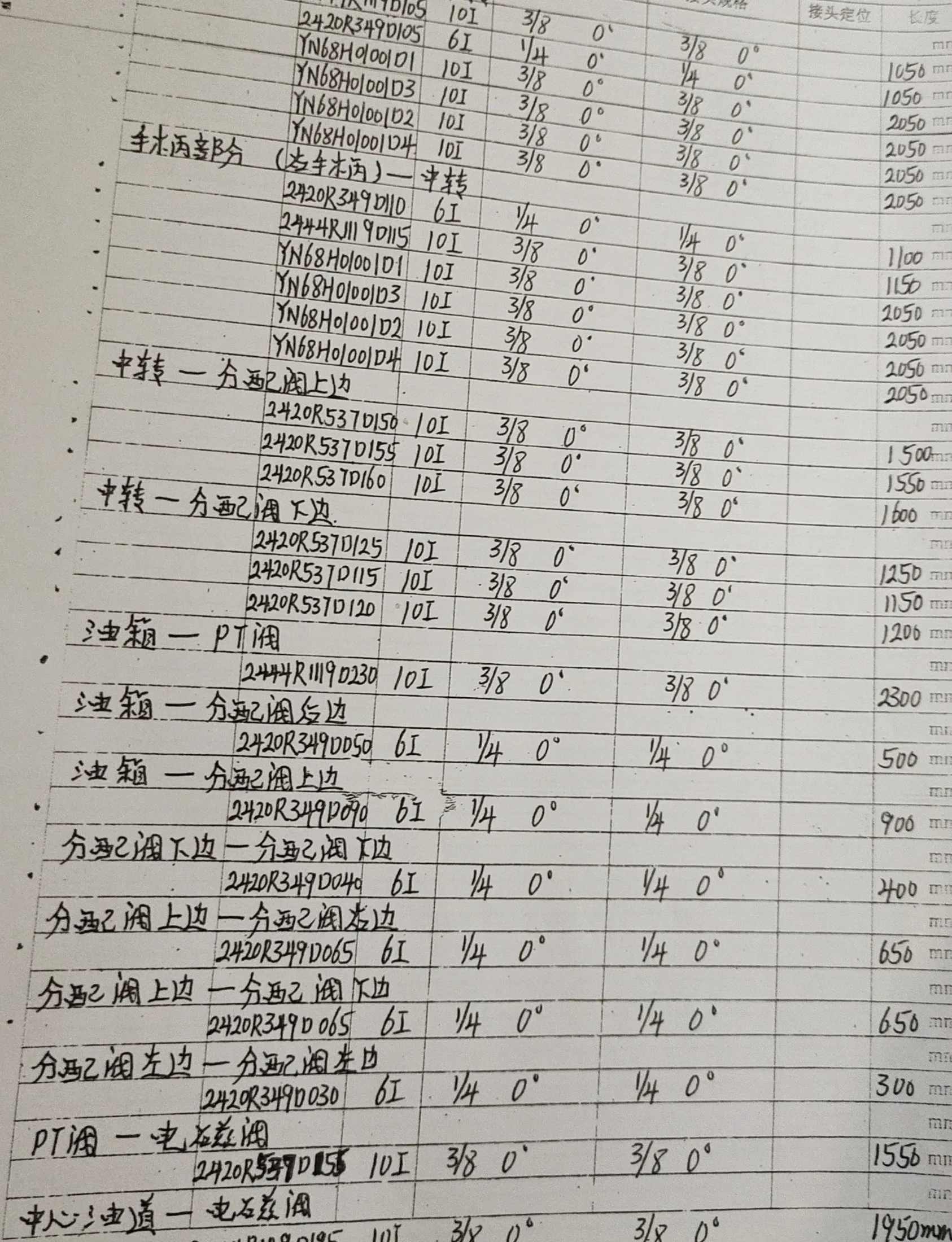

Kobelco SK210-6E hydraulic hose part numbers and recorded lengths — technician notebook page 4 of 4
Notebook page 4 of 4View full-size

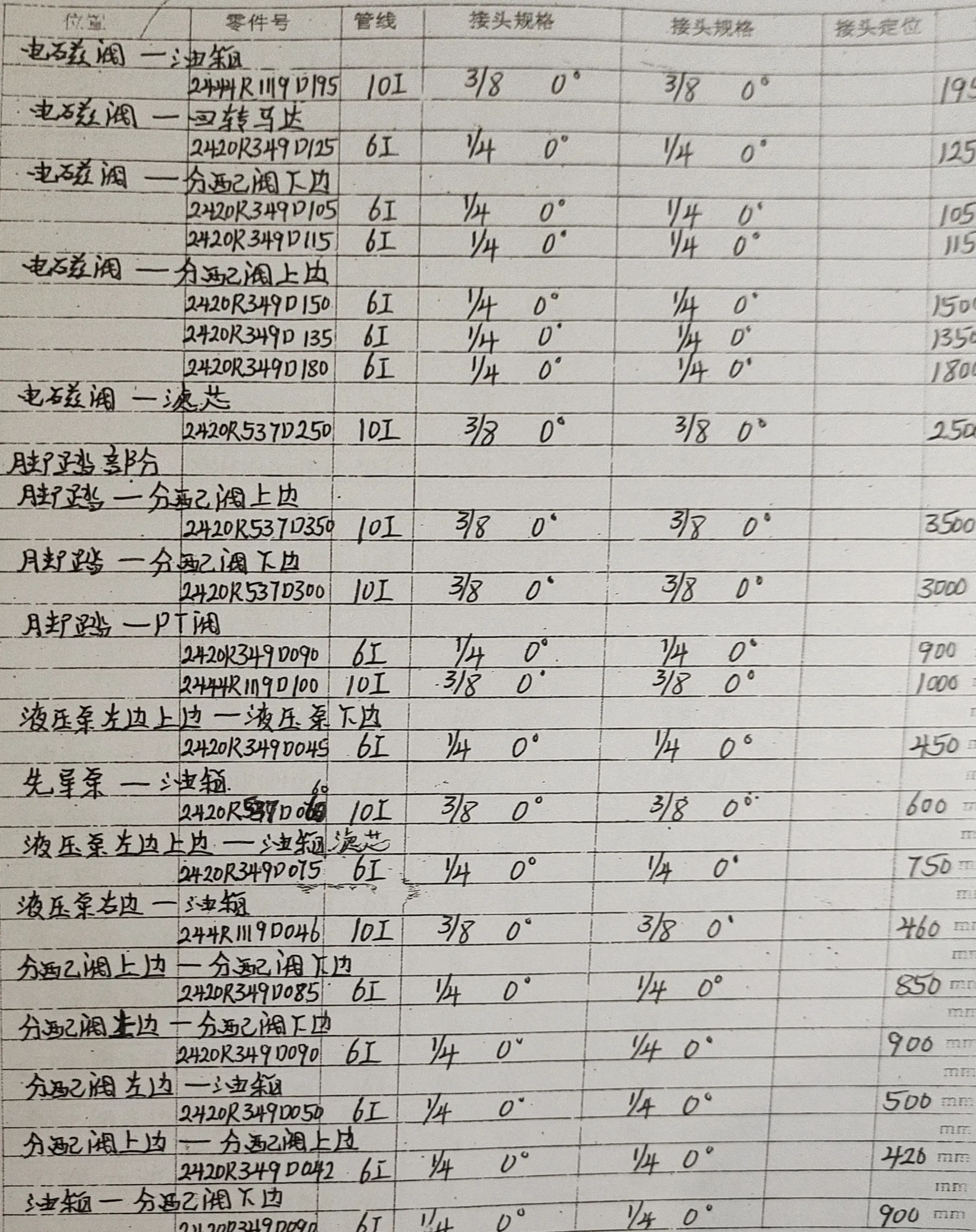

Kobelco SK210-6E hydraulic hose part numbers and recorded lengths — technician notebook page 2 of 4
Notebook page 2 of 4View full-size
Kobelco SK210-6E hydraulic hose part numbers and recorded lengths — technician notebook page 1 of 4
Notebook page 1 of 4View full-size

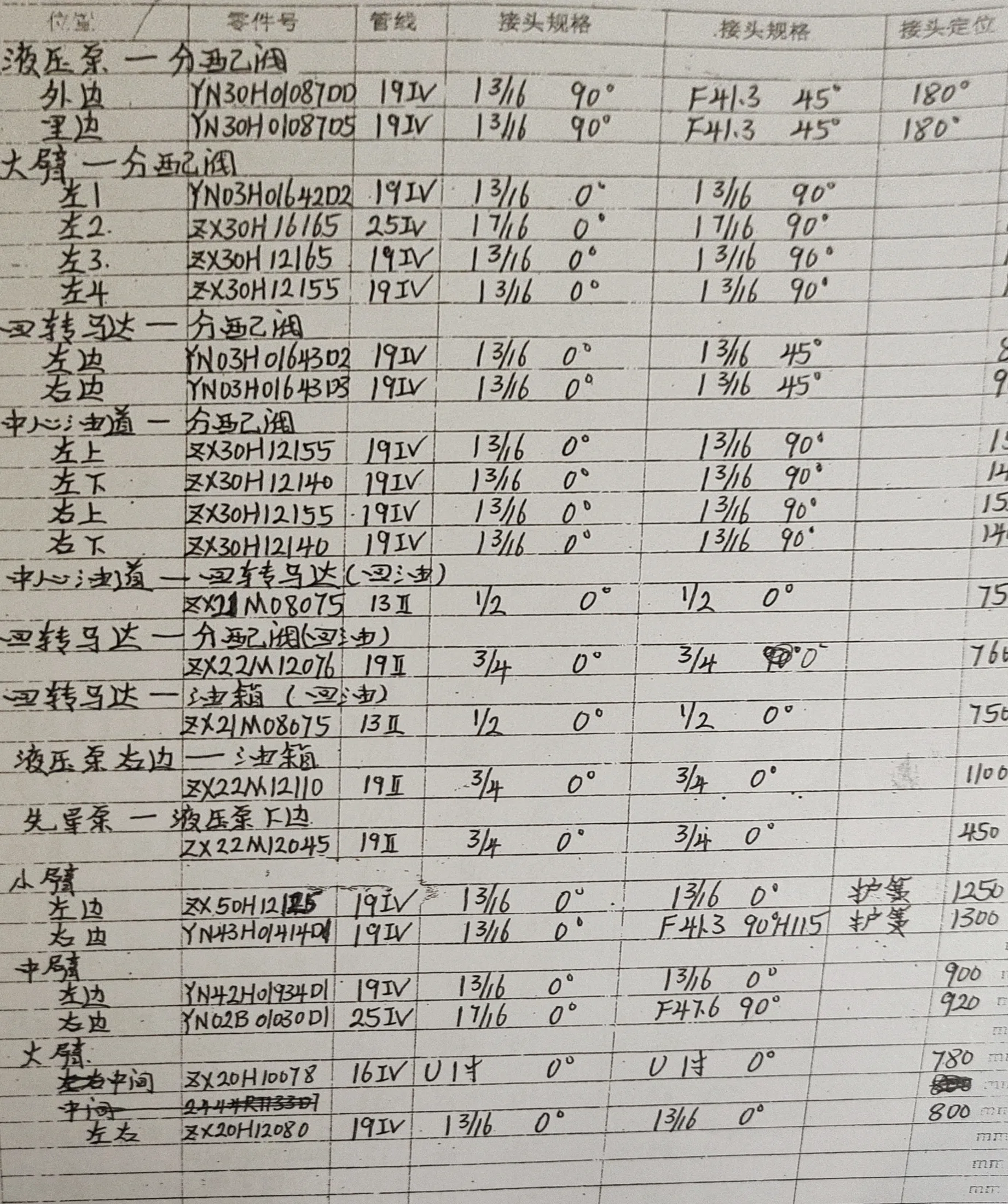

Kobelco SK210-6E hydraulic hose part numbers and recorded lengths — technician notebook page 3 of 4
Notebook page 3 of 4View full-size
