Kobelco SK380D-8 Workshop Hose Notes

Workshop notebook pages related to the Kobelco SK380D-8 may help identify the machine or hose. Confirm all manufacturing specifications on the machine.

Technician notes

Workshop measurements

These notebook pages may help identify a hose or compare a recorded length. Confirm the final length, fittings, pressure rating, and routing on the machine before fabrication.

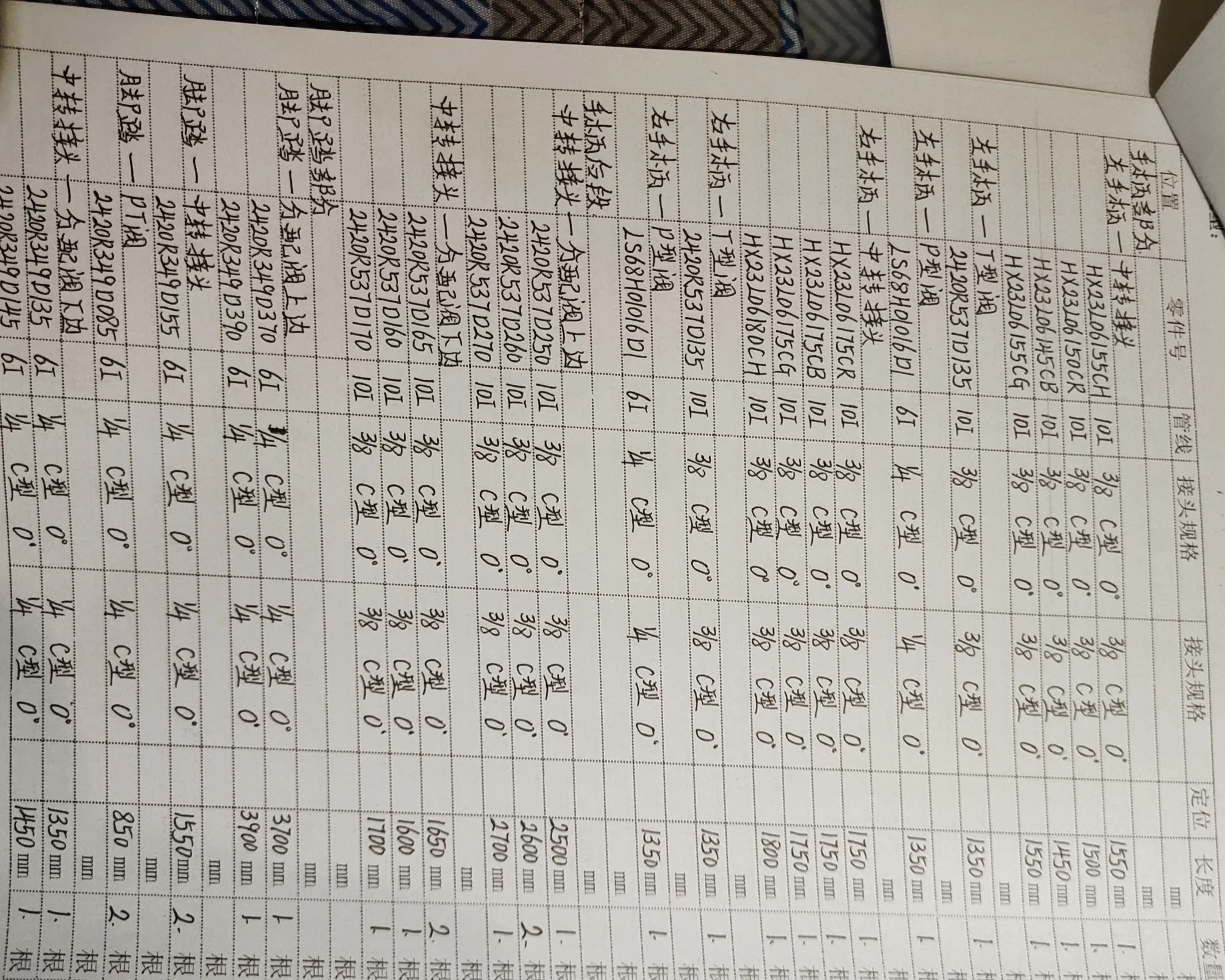

Kobelco SK380D-8 hydraulic hose part numbers and recorded lengths — technician notebook page 4 of 5
Notebook page 4 of 5View full-size
Kobelco SK380D-8 hydraulic hose part numbers and recorded lengths — technician notebook page 5 of 5
Notebook page 5 of 5View full-size
Kobelco SK380D-8 hydraulic hose part numbers and recorded lengths — technician notebook page 2 of 5
Notebook page 2 of 5View full-size

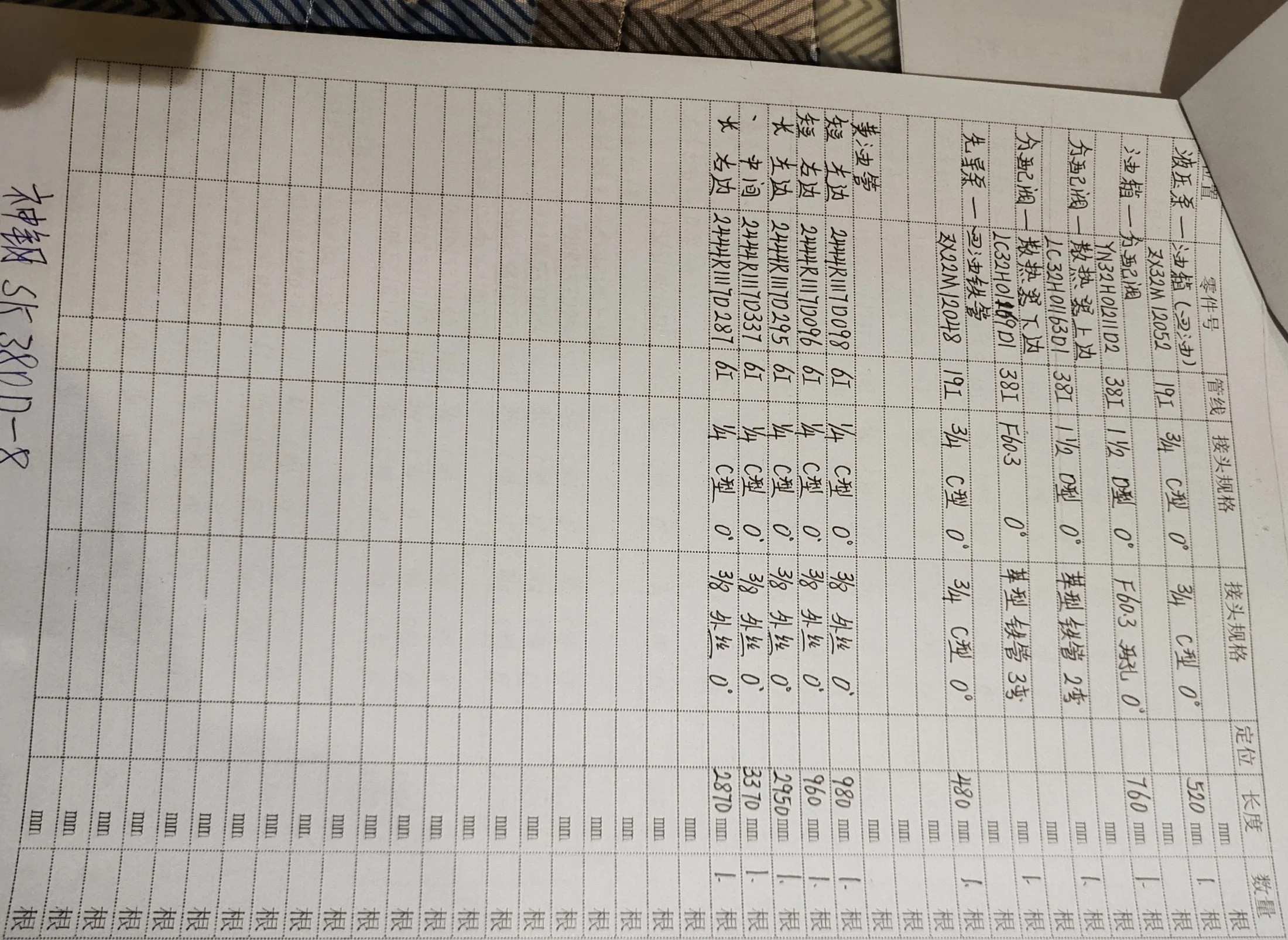

Kobelco SK380D-8 hydraulic hose part numbers and recorded lengths — technician notebook page 1 of 5
Notebook page 1 of 5View full-size
Kobelco SK380D-8 hydraulic hose part numbers and recorded lengths — technician notebook page 3 of 5
Notebook page 3 of 5View full-size
