Individual hose record
4659943 Hose Repair Specifications
Excavator · Hitachi · ZX190W-6N · Attachments
Finished length760 mm
Locate this hose

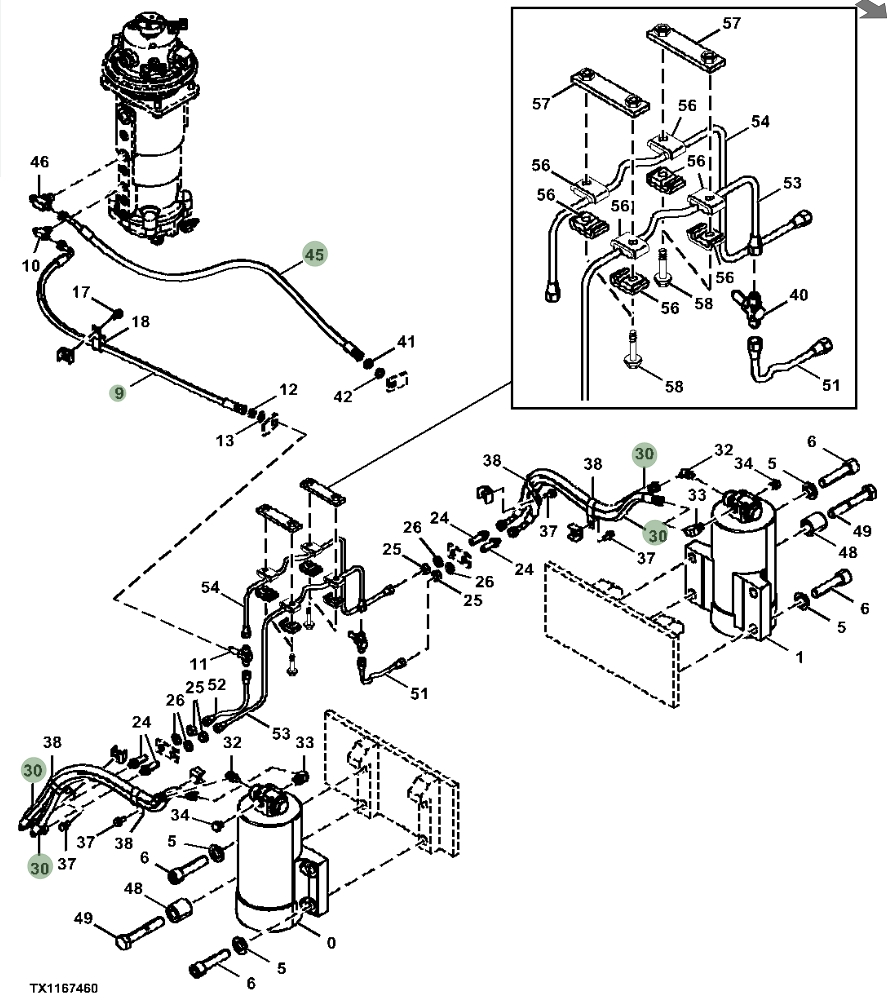

Installation diagram — Pipe No. 30
Locate Pipe No. 30 in the diagram, then confirm part number 4659943 before removing the hose.
Repair specifications
- Part number
- 4659943
- Diagram pipe number
- 30
- Installation route
- 轮上作动筒~铁管(作动筒)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 760 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 4
