Individual hose record

4270458 Hose Repair Specifications

Excavator · Hitachi · ZX190W-6N · Attachments

Finished length800 mm

Locate this hose

Installation diagram — Pipe No. 18

Locate Pipe No. 18 in the diagram, then confirm part number 4270458 before removing the hose.

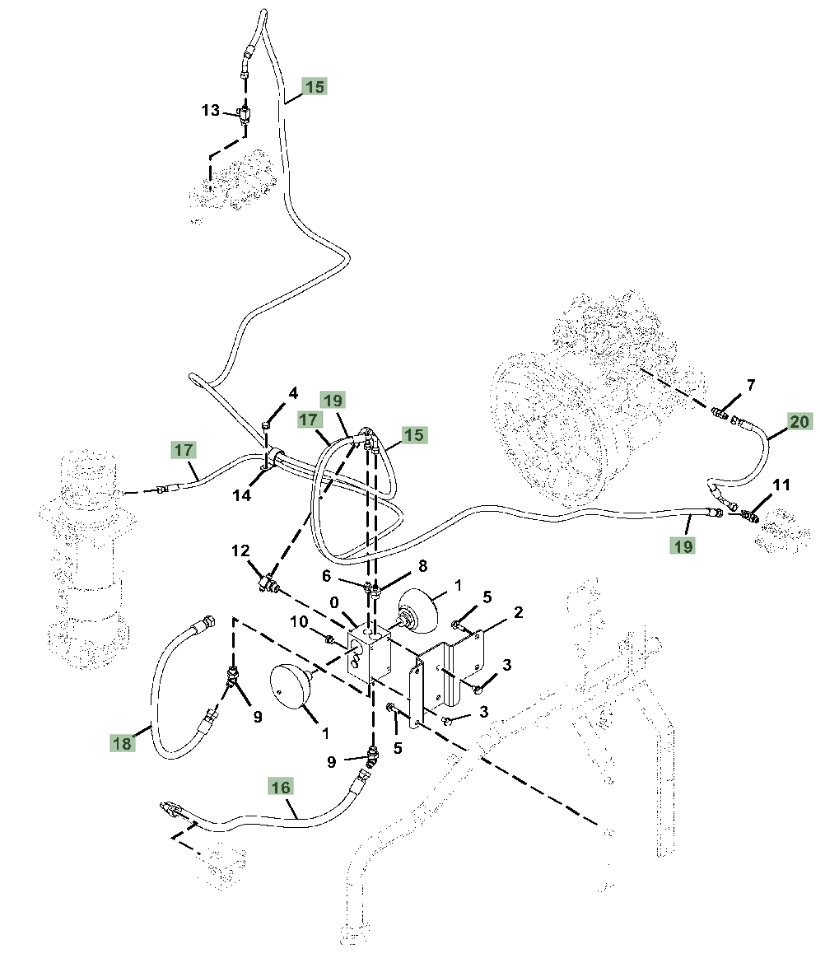

Hitachi ZX190W-6N installation diagram showing hydraulic hose 4270458 at Pipe No. 18 — Hitachi ZX190W-6NPart 4270458 · Pipe No. 18Open full-size diagram

Repair specifications

Part number: 4270458
Diagram pipe number: 18
Installation route: 蓄能器~
Hose specification: DN12;1SN-8;7MPa
Finished length: 800 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 30

4659943

Installation route: 轮上作动筒~铁管(作动筒)

Length: 760 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
