Individual hose record
4640562 Hose Repair Specifications
Excavator · Hitachi · ZX850LC-3 · Attachments
Finished length400 mm
Locate this hose

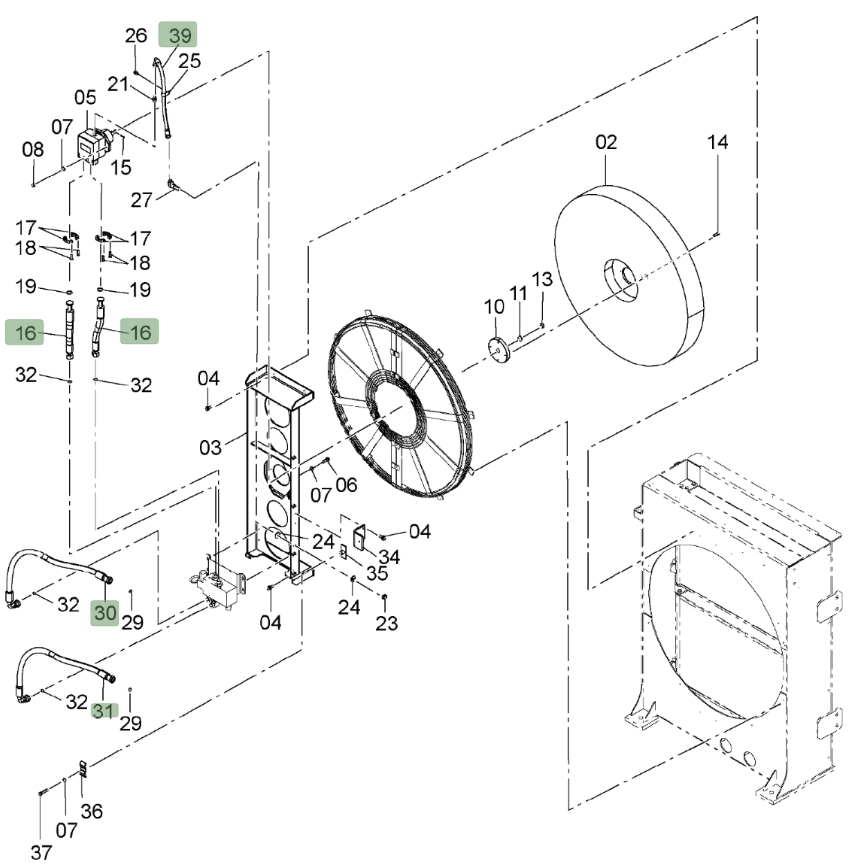

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number 4640562 before removing the hose.
Repair specifications
- Part number
- 4640562
- Diagram pipe number
- 16
- Installation route
- 电磁阀(散热器)~风扇液压油泵
- Hose specification
- DN19;4SP-12;38Mpa
- Finished length
- 400 mm
- Working pressure
- 38 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- Light-series flangeOriginal Chinese: 法兰-轻型
- Quantity
- 2
